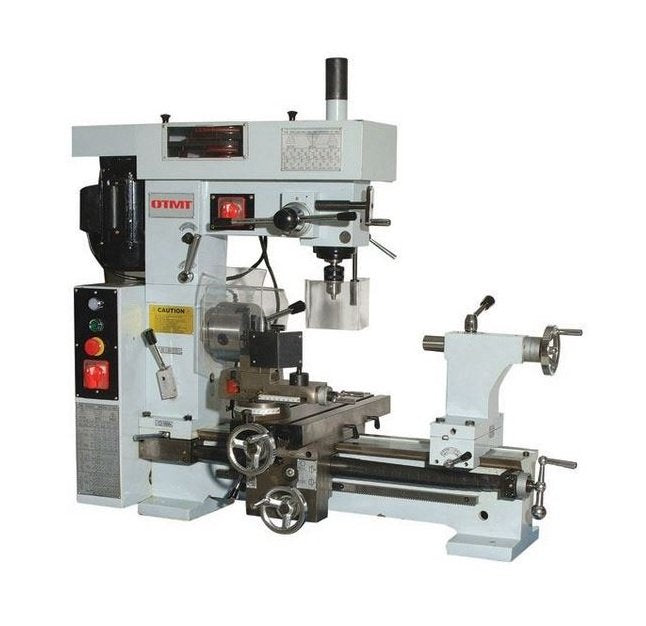

Precise Combination Lathe Drill Press with Swiveling Head
Precise Combination Lathe Drill Press with Swiveling Head
SKU:DRI-527c87
Experience precision and versatility with the Precise Combination Lathe Drill Press
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Precise Combination Lathe Drill Press with Swiveling Head
$2,699.99
Quantity: 1
Claim Your Seller Account
Precise Combination Lathe Drill Press with Swiveling Head
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precise Combination Lathe Drill Press offers precision and versatility in a single machine. With a powerful 3/4 HP motor and speed adjustment ranging from 120 to 3,000 RPM, this unit is perfect for turning, drilling, and milling operations. The swiveling head allows for flexibility in positioning, while the large mill table provides ample workspace. Designed for efficiency and accuracy, this machine is ideal for workshops and manufacturing facilities requiring high-quality machining equipment.
Product Specifications
Features Features
Speed adjustment from 120 to 3,000 RPM.Swiveling head.Powerful 3/4 HP motor.Two separate motors for lathe and mill/drill operations.Large mill table.
Technical Specs Brands
Precise
Technical Specs Chuck Style
Drill chuck and Arbor
Technical Specs Combination Lathe Price Table Description
18.7 x 6.29 in
Technical Specs Country Of Origin
Import
Technical Specs Cross Range Of Automatic Feeding
0.002 to 0.014 in | 0.05 to 0.35 mm
Technical Specs Distance Between Centers
19.68 in | 500 mm
Technical Specs Drilling And Milling Range Of Speed
120 to 3000 rpm
Technical Specs Drilling And Milling Spindle Taper
R8
Technical Specs Drilling And Milling Step Of Speed
16
Technical Specs Drilling Capacity
0.86 in | 22 mm
Technical Specs End Milling Capacity
1.10 in | 28 mm
Technical Specs Face Milling Capacity
3.14 in | 80 mm
Technical Specs Height
37.99 in
Technical Specs Horsepower
3/4 hp
Technical Specs Length
57.48 in
Technical Specs Longitudinal Range Of Automatic Feeding
0.002 to 0.014 in | 0.05 to 0.35 mm
Technical Specs Maximum Cross Travel
7.875 in | 200 mm
Technical Specs Maximum Distance Between Spindle Center And Colu
11.22 in | 285 mm
Technical Specs Maximum Distance Between Spindle Nose And Table
12.04 in | 306 mm
Technical Specs Maximum Longitudinal Travel
17.32 mm | 440 in
Technical Specs Motor Speed
120 to 3000 rpm
Technical Specs Operation
Turning, Drilling and Milling
Technical Specs Overall Height
37.99 in | 965 mm
Technical Specs Overall Length
57.48 in | 1460 mm
Technical Specs Shipping Weight
617 lb
Technical Specs Spindle Hole Diameter
1.10 in | 28 mm
Technical Specs Spindle Taper
MT4
Technical Specs Spindle Travel
4.33 in | 110 mm
Technical Specs Swing Over Bed
16.53 in | 420 mm
Technical Specs Swivel Angle Of Headstock
180 º
Technical Specs Table Dimensions
18.70 x 6.29 in | 475 x 160 mm
Technical Specs Tailstock Spindle Travel
2.75 in | 70 mm
Technical Specs Tailstock Taper
MT3
Technical Specs Thread Range
4 ~ 120 T.P.I. (0.2 - 6 mm)
Technical Specs Turning Range Of Speed
160 to 1,360 RPM; Step of Speed: 7
Technical Specs Weight
617 lb
Technical Specs Width
22.83 in
