Precision 1/8" NPT x Tube Orifice Adapters
Precision 1/8" NPT x Tube Orifice Adapters
SKU:PRE-f32960
Achieve precise fluid control with our high-quality Metal Orifice Adapters, perfect for air and water flow applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision 1/8" NPT x Tube Orifice Adapters
$29.99
Quantity: 1
Claim Your Seller Account
Precision 1/8" NPT x Tube Orifice Adapters
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

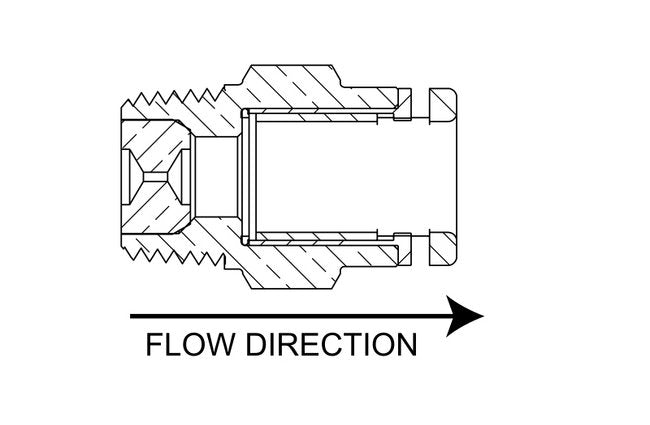

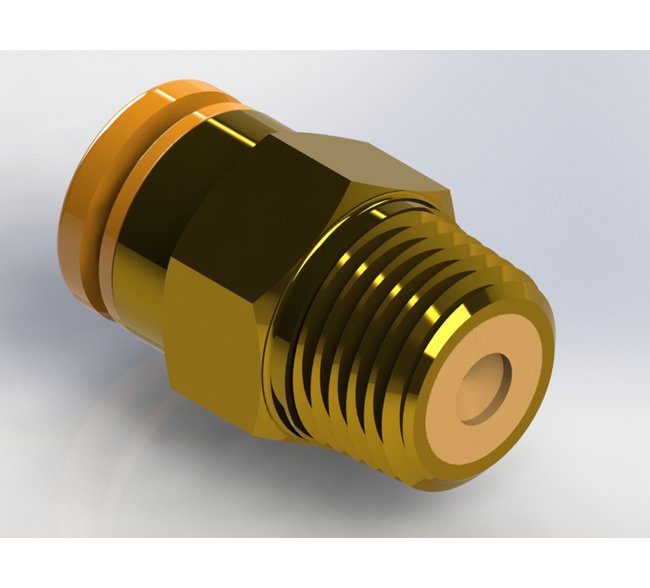

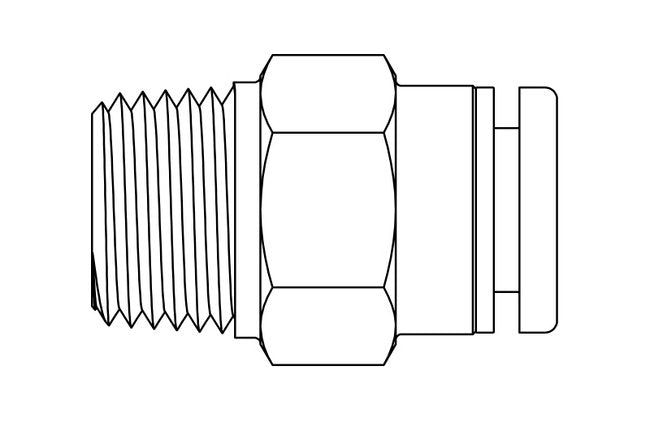

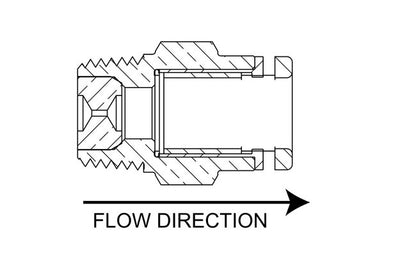

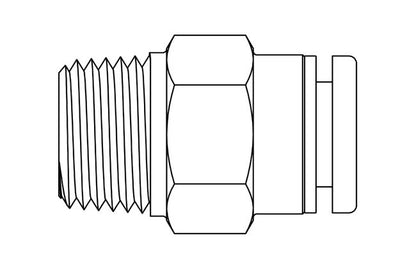

The Precision Metal Orifices - Push-On Tube Adapters offer precise fluid control with dimensions of 0.023" orifice diameter and a total length of 0.89". Crafted from durable brass/plastic with Buna-N seals, these adapters ensure reliable performance under pressures up to 140 psig. Ideal for air and water flow applications, these adapters comply with Federal/DoD procurement standards, GSA requirements, and FAR compliance factors.
Product Specifications
Dimensions Orifice Diameter
0.023 in
Dimensions Total Length
0.89 in
Dimensions Width Across Flats Hex
5/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.99 | 5 psig: 6.87 | 10 psig: 10.1 | 15 psig: 12.6 | 20 psig: 14.7 | 25 psig: 16.8 | 30 psig: 19.0 | 40 psig: 23.3 | 50 psig: 27.5 | 60 psig: 31.8 | 70 psig: 36.0 | 80 psig: 40.3 | 90 psig: 44.5 | 100 psig: 48.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.41 | 5 psig (34.5 kPag): 3.24 | 10 psig (69.0 kPag): 4.75 | 15 psig (103.4 kPag): 5.93 | 20 psig (137.9 kPag): 6.95 | 25 psig (172.4 kPag): 7.95 | 30 psig (206.9 kPag): 8.98 | 40 psig (275.8 kPag): 11.0 | 50 psig (344.8 kPag): 13.0 | 60 psig (413.7 kPag): 15.0 | 70 psig (482.7 kPag): 17.0 | 80 psig (551.6 kPag): 19.0 | 90 psig (620.6 kPag): 21.0 | 100 psig (689.5 kPag): 23.0
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 6.04 | 20 In. Hg.: 6.04 | 30 In. Hg.: 6.04
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.85 | 20 In. Hg. (508 Mm. Hg.): 2.85 | 30 In. Hg. (762 Mm. Hg.): 2.85
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.45 | 10 In. Hg.: 5.68
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.10 | 10 In. Hg. (254 Mm. Hg.): 2.68
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.012 | 2 psig: 0.017 | 3 psig: 0.021 | 4 psig: 0.024 | 5 psig: 0.027 | 6 psig: 0.029 | 7 psig: 0.032 | 8 psig: 0.034 | 9 psig: 0.036 | 10 psig: 0.038 | 15 psig: 0.046 | 20 psig: 0.054 | 30 psig: 0.066 | 40 psig: 0.076 | 50 psig: 0.085 | 60 psig: 0.093 | 70 psig: 0.100 | 80 psig: 0.107 | 90 psig: 0.114 | 100 psig: 0.120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.045 | 2 psig (13.8 kPag): 0.064 | 3 psig (20.7 kPag): 0.079 | 4 psig (27.6 kPag): 0.091 | 5 psig (34.5 kPag): 0.102 | 6 psig (41.4 kPag): 0.102 | 7 psig (48.3 kPag): 0.120 | 8 psig (55.2 kPag): 0.128 | 9 psig (62.1 kPag): 0.136 | 10 psig (69 kPag): 0.144 | 15 psig (103.4 kPag): 0.176 | 20 psig (137.9 kPag): 0.203 | 30 psig (206.9 kPag): 0.249 | 40 psig (275.8 kPag): 0.287 | 50 psig (344.8 kPag): 0.321 | 60 psig (413.7 kPag): 0.352 | 70 psig (482.7 kPag): 0.380 | 80 psig (551.6 kPag): 0.406 | 90 psig (620.6 kPag): 0.431 | 100 psig (689.5 kPag): 0.454
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/4" OD Tube Push-Lock
Specifications Cv
0.012
Specifications Material
Brass/Plastic
Specifications Maximum Operating Pressure
140 psig
Specifications Nominal Orifice Size
23
Specifications Screened
None
Specifications Seal Material
Buna-N
