Precision 19-Inch Column Servo Drill Press with Collet Spindle
Precision 19-Inch Column Servo Drill Press with Collet Spindle
SKU:DRI-255e4a
Precision 19" Column Servo Drill Press for laboratory and precision work. Variable speed spindle, high accuracy down stop, wide base selection.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Precision 19-Inch Column Servo Drill Press with Collet Spindle
$899.99
Quantity: 1
Claim Your Seller Account
Precision 19-Inch Column Servo Drill Press with Collet Spindle
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

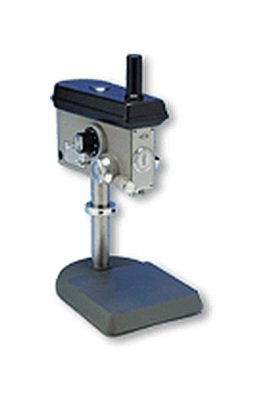

The Precision 19-Inch Column Servo Drill Press with Collet Spindle is crafted for laboratory, prototype, and precision production applications. It features a high-accuracy down stop for precise drilling depth control, variable speed spindle ranging from 200 to 20,000 RPM, and a quill travel of 1.5 inches. With a wide selection of bases and accessories, this drill press offers versatility and efficiency for inch and metric calibration needs. Its robust construction and advanced features make it a reliable choice for demanding machining tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
Inch and Metric versionsDrill holes down to 0.002â / 0.05mm Dia.Spindle runout: 0.0002" / 0.005 mm TIRHigh accuracy down stop for drilling depth control (0.001â / 0.05mm per division)Variable speed spindle (200-20,000 RPM)Quill travel (stroke): 1.5â / 38.1mmKeyless Albrecht chuck versions for quick and easy drill change;standard 0-1/8" / 0-3 mm; optional 0-1/16" / 0-1.5 mmWW collet versions for less run out and improved accuracy;0.0039"-0.252" / 0.1-6.4 mm collet sizes availableGraduated dial gauge for depth control(0.001â / 0.05mm per division)Wide selection of bases and accessoriesDrill capacity: to 1/16" in inconelto 1/8" in steelto 3/16" in aluminum (collet only)Electrical: 115 volts AC, 50/60 Hz, 2 amps(220V/115V transformer available)
Technical Specs Base
Fine grain, ground cast iron base
Technical Specs Brands
Servo

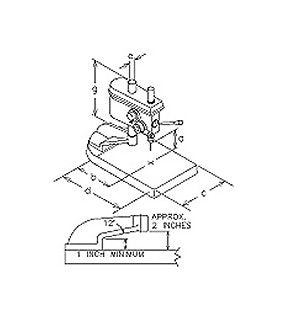

Technical Specs Column Diameter Through Head E
1.25 in | 31 mm
Technical Specs Column Length G
19 in | 483 mm
Technical Specs Footprint Depth
11.8 in | 299 mm
Technical Specs Footprint Width
7.15 in | 181 mm
Technical Specs Maximum Distance Of Chuckcollet To Basea
14.5 in | 368 mm
Technical Specs Mt3 Spindle Weldon
Collet
Technical Specs Overall Height
25 in | 635 mm
Technical Specs Throat Depth B Spindle Cl To Column
3.5 in | 89 mm
Technical Specs Weight
21.0 lb | 9.5 kg
Technical Specs Working Base Area Depth D
6.5 in | 152 mm
Technical Specs Working Base Area Width C
6.5 in | 165 mm
