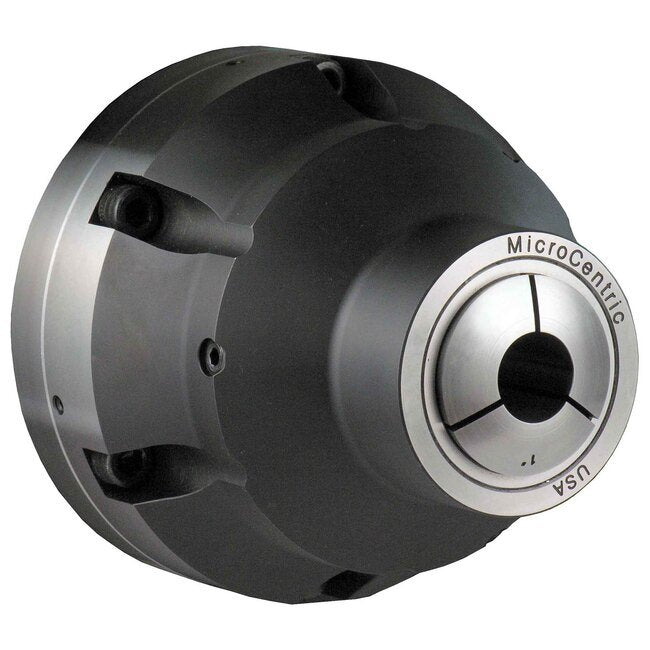

Precision 3J-ND Dead Length Collet Chuck
Precision 3J-ND Dead Length Collet Chuck
SKU:CON-22e4c6
High-precision 3J-ND Dead Length Collet Chuck for accurate and durable machining performance.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Precision 3J-ND Dead Length Collet Chuck
$599.99
Quantity: 1
Claim Your Seller Account
Precision 3J-ND Dead Length Collet Chuck
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision 3J-ND Dead Length Collet Chuck is engineered for precision and durability, featuring a dead-length design with a reduced nose for enhanced accuracy. Crafted from hardened alloy steel, all components are precision-ground to ensure long-term performance. Sealed internal components prevent chip accumulation for consistent operation. Its modular design allows seamless adaptation to various machine spindle and draw tube configurations, offering versatility and reliability in machining operations.

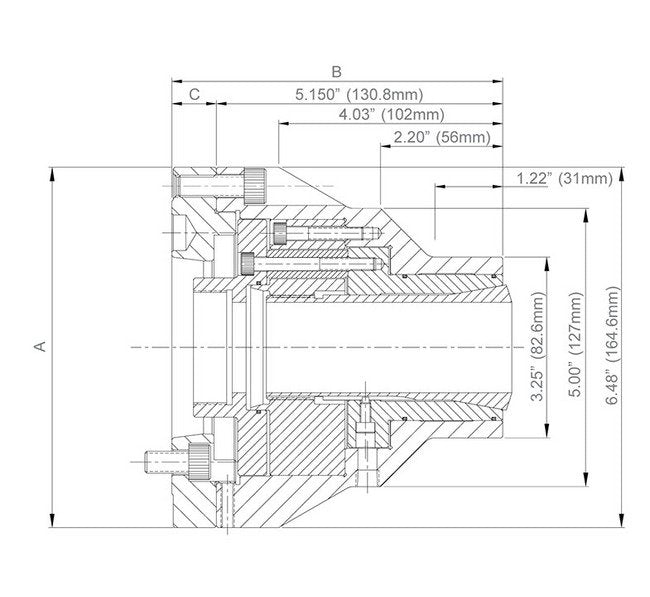

Product Specifications
Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
6.500 in | 165.1 mm
Specifications Chuck Weight
30.0 lb | 13.3 kg
Specifications Collet Model
3J
Specifications C Dimension
1.350 in | 31.4 mm
Specifications Item No
35 100 312
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
1.750 in | 44.4 mm
