Precision 3J-ND Dead Length Collet Chucks for High-Performance Machining
Precision 3J-ND Dead Length Collet Chucks for High-Performance Machining
SKU:CON-abeef4
Enhance machining precision with our 3J-ND Dead Length Collet Chucks. Sealed components prevent chip accumulation for reliable performance.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Precision 3J-ND Dead Length Collet Chucks for High-Performance Machining
$399.99
Quantity: 1
Claim Your Seller Account
Precision 3J-ND Dead Length Collet Chucks for High-Performance Machining
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance machining efficiency with our precision-engineered 3J-ND Dead Length Collet Chucks. Designed with a dead length feature and reduced nose for accuracy, these collet chucks are crafted from hardened alloy steel for long-term durability. The sealed internal components prevent chip accumulation, ensuring consistent performance. The modular design allows adaptation to various machine spindles and draw tube configurations, making it versatile for different applications.
Product Specifications

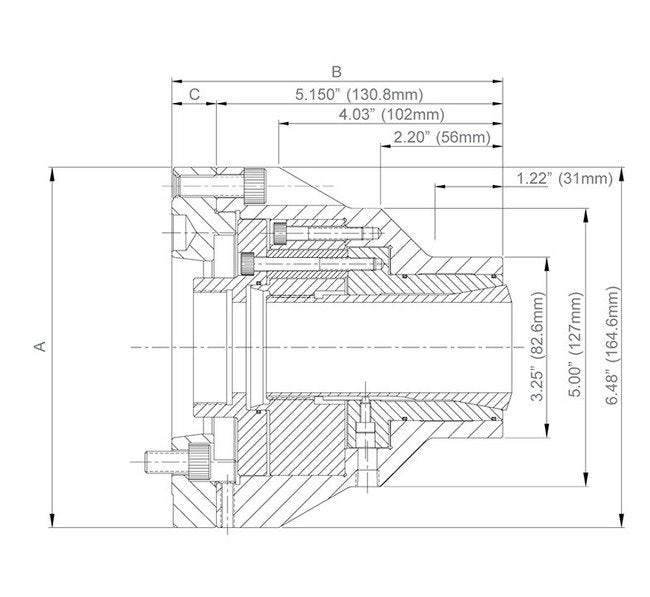

Specifications A Dimension
6.480 in | 164.6 mm
Specifications B Dimension
5.950 in | 151.1 mm
Specifications Chuck Weight
28.8 lb | 12.8 kg
Specifications Collet Model
3J
Specifications C Dimension
0.800 in | 27.9 mm
Specifications Item No
35 100 311
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
1.750 in | 44.4 mm
