Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

SKU:CON-c59f40

Enhance precision and performance with our 3J-ND Dead Length Collets suitable for industrial machining.

Regular price $899.99
Regular price Sale price $899.99
Sale

Initiate Order

Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

$899.99

Quantity: 1

Claim Your Seller Account

Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

Precision 3J-ND Dead Length Collet Chucks for Industrial Machining

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

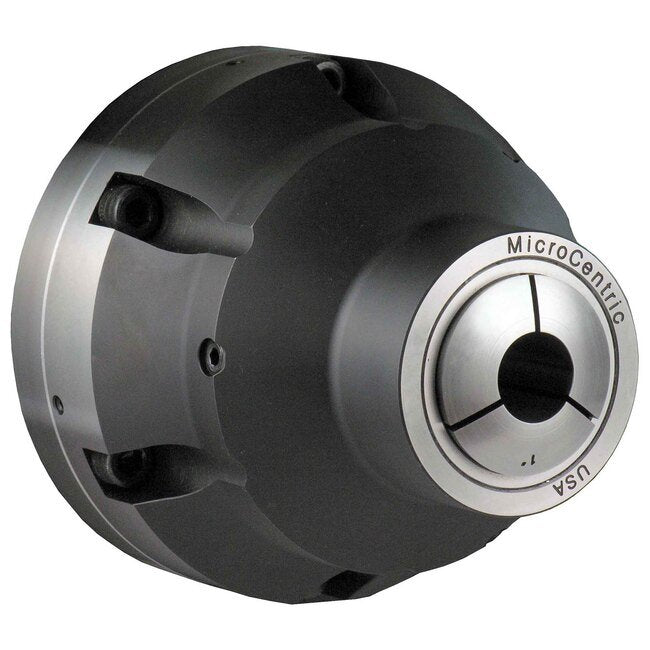

The Precision 3J-ND Dead Length Collet Chucks are engineered for high-performance industrial machining applications. Featuring a dead length design with a reduced nose, these chucks are manufactured from hardened alloy steel components precision ground to ensure exceptional accuracy and long-term reliability. Internal components are sealed to prevent chip accumulation, guaranteeing uninterrupted operation. The modular chuck design allows seamless adaptation to various machine spindles and draw tube configurations, ensuring versatility and compatibility with different setups. With a maximum speed of 6,000 rpm, through capacity of 1.750 inches, and a linear chuck stroke of 0.078 inches, these collet chucks deliver precision and efficiency with every use.

Product Specifications

Specifications A Dimension
8.250 in | 209.6 mm
Specifications B Dimension
6.775 in | 172.1 mm
Specifications Chuck Weight
36.5 lb | 16.2 kg
Specifications Collet Model
3J
Specifications C Dimension
1.625 in | 41.3 mm
Specifications Item No
35 100 313
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
1.750 in | 44.4 mm
