Precision 4-Point Contact Ball Bearings
Precision 4-Point Contact Ball Bearings
SKU:ANG-8fe638
High-performance 4-Point Contact Ball Bearings for heavy-duty applications, meeting federal procurement standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Precision 4-Point Contact Ball Bearings
$249.99
Quantity: 1
Claim Your Seller Account
Precision 4-Point Contact Ball Bearings
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

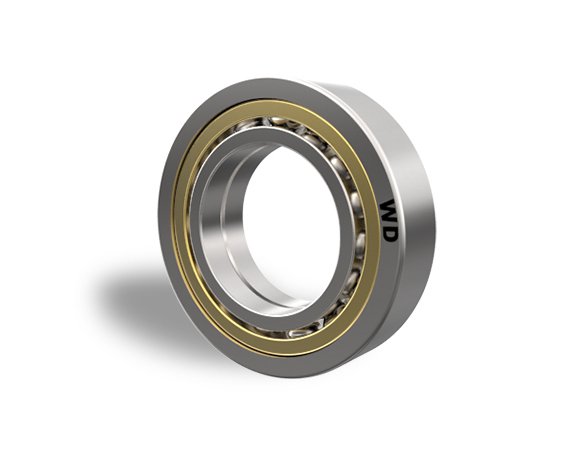

Our Precision 4-Point Contact Ball Bearings are engineered for optimal performance in high-speed applications. With a bore diameter of 100mm, outside diameter of 180mm, and a dynamic load rating of 201kN, these bearings ensure smooth operation under heavy loads. Designed for industrial precision, they meet stringent federal procurement standards and offer reliable performance in critical machinery.
Product Specifications

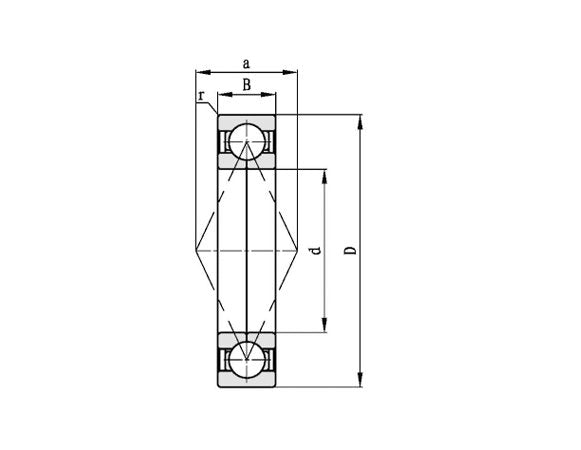

Boundary Dimensions Bore Diameter
100 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
180 mm
Boundary Dimensions Overall Bearing Width
34 mm
Limiting Speed Grease Limiting Speed
2800 rpm
Limiting Speed Oil Limiting Speed
3800 rpm
Load Rating Dynamic Cr Load Rating
201 kN
Load Rating Static Cor Load Rating
213 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
168 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
112 mm
Specifications Approximate Mass
4.02 kg
Specifications Distance Of Working Points A
98 mm
