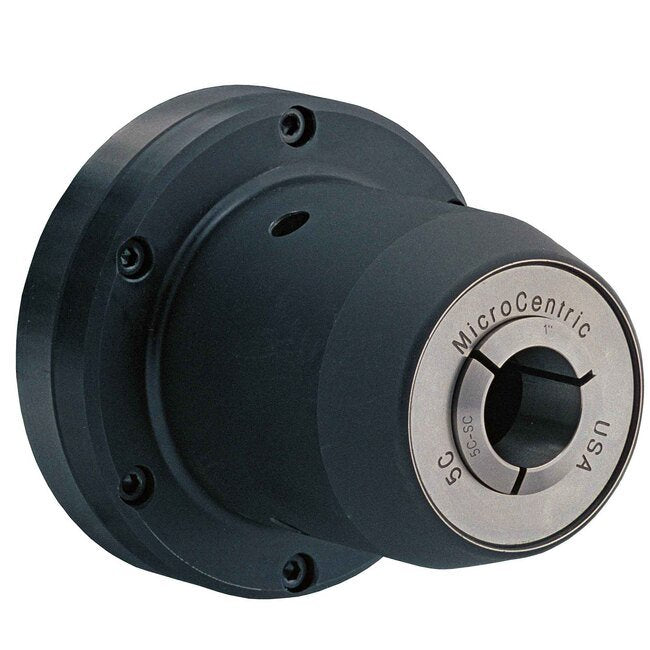

Precision 5C-D Dead Length Collet Chuck Set
Precision 5C-D Dead Length Collet Chuck Set
SKU:CON-6cf128
Enhance machining precision with the Precision 5C-D Dead Length Collet Chuck Set. Versatile, durable, and precise for small machines and rotary tables.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Precision 5C-D Dead Length Collet Chuck Set
$199.99
Quantity: 1
Claim Your Seller Account
Precision 5C-D Dead Length Collet Chuck Set
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision 5C-D Dead Length Collet Chuck Set is designed with a dead-length feature and reduced diameter mounting suitable for smaller machines and rotary tables. Crafted from hardened alloy steel with precision-ground components, this chuck ensures exceptional accuracy and long-term performance. Its sealed internal components prevent chip accumulation, enhancing operational efficiency. The modular design allows easy adaptation to various machine spindle and draw tube configurations, offering versatility and convenience. With specifications meeting industry standards, this collet chuck set is a reliable choice for precision machining applications.

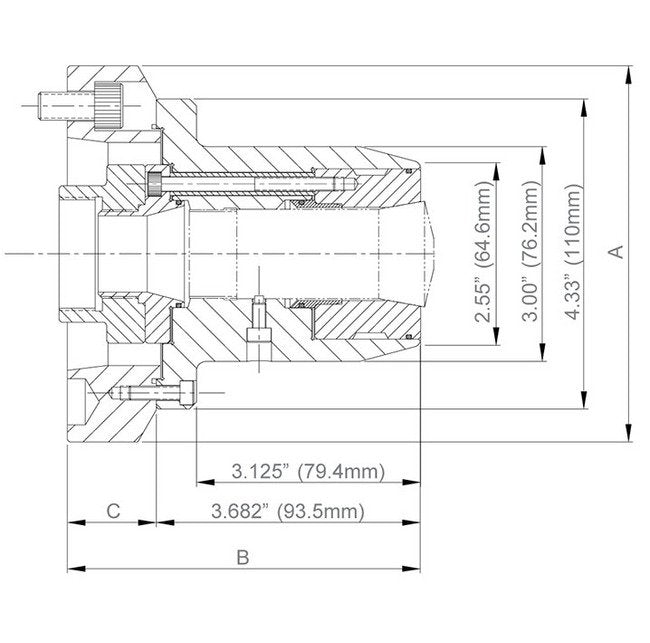

Product Specifications
Specifications A Dimension
4.330 in | 10 mm
Specifications B Dimension
4.250 in | 108 mm
Specifications Chuck Weight
7.9 lb | 3.5 kg
Specifications Collet Model
5C
Specifications C Dimension
0.568 in | 14.4 mm
Specifications Linear Chuck Stroke
0.078 in | 2.0 mm
Specifications Max Speed
6,000 rpm
Specifications Spindle Nose
85mm
Specifications Through Capacity
1.062 in | 27 mm
