Precision A-2 Tool Steel Blank QC Top Jaws for KSF Power Chucks
Precision A-2 Tool Steel Blank QC Top Jaws for KSF Power Chucks
SKU:KSF-d4fb0c
Enhance precision with A-2 Tool Steel Blank QC Top Jaws for KSF Power Chucks. Accurate, heat-treatable up to Rc 62 hardness. Custom quotes available.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Precision A-2 Tool Steel Blank QC Top Jaws for KSF Power Chucks
$79.99
Quantity: 1
Claim Your Seller Account
Precision A-2 Tool Steel Blank QC Top Jaws for KSF Power Chucks
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

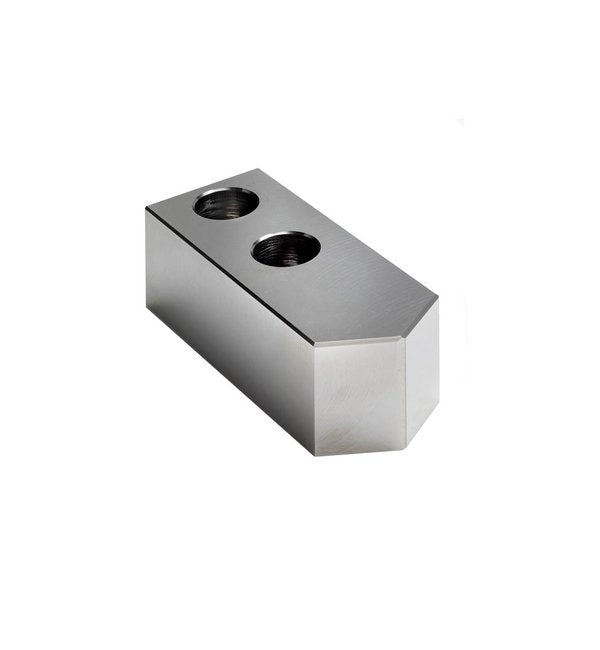

Enhance the precision of your machining operations with these A-2 tool steel Blank QC Top Jaws designed for KSF-08/QC chucks. Featuring precision jig-bored tapered locating holes, these jaws offer accurate location with minimal distortion when heat treated up to Rc 62 hardness. With dimensions A: 1.50 in, B: 3.90 in, C: 2.00 in, and a weight of 2.80 lb, these top jaws are ideal for ensuring secure workholding in your applications. Custom quotes available for special QC top jaws upon request.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

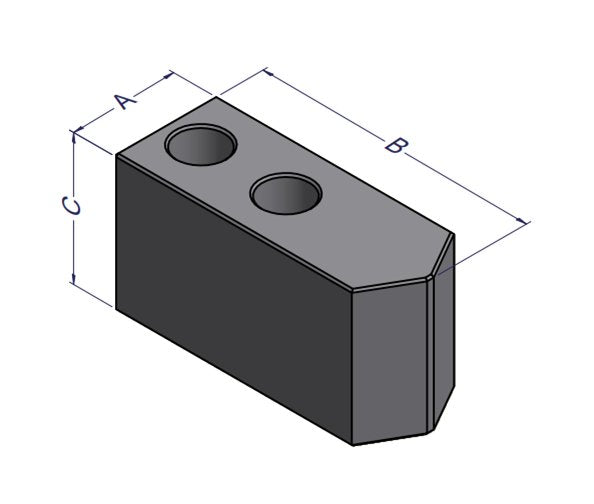

Specifications A Dimension
1.50 in | 38.1 mm
Specifications B Dimension
3.90 in | 99.1 mm
Specifications Chuck
KSF-08/QC
Specifications C Dimension
2.00 in | 50.8 mm
Specifications Material
A-2
Specifications Weight
2.80 lb | 1.3 kg
