Precision A-2 Tool Steel QC Blank Top Jaws - 8 inch Chuck
Precision A-2 Tool Steel QC Blank Top Jaws - 8 inch Chuck
SKU:PRE-40f99e
Precision A-2 Tool Steel QC Blank Top Jaws for 8-inch chucks. Superior accuracy and versatility for machining tasks.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Precision A-2 Tool Steel QC Blank Top Jaws - 8 inch Chuck
$89.99
Quantity: 1
Claim Your Seller Account
Precision A-2 Tool Steel QC Blank Top Jaws - 8 inch Chuck
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

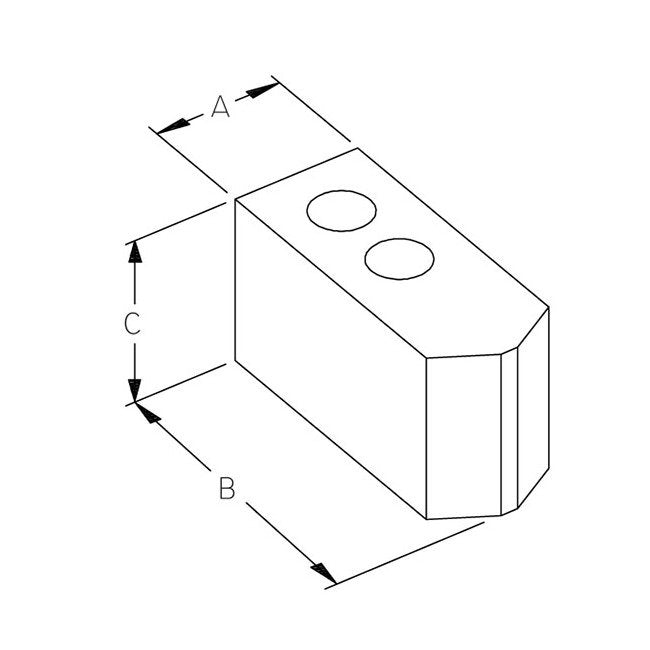

The Precision A-2 Tool Steel QC Blank Top Jaws are meticulously crafted for precision workholding applications. Made from high-grade A-2 tool steel, these jaws feature finished ground tapered locating holes for superior accuracy. With dimensions of A: 1.50 in, B: 3.95 in, and C: 2.00 in, these jaws are designed to meet the demanding requirements of machining tasks. Compatible with 8-inch chucks, these jaws can be rough and finish bored on a QC chuck or QC jaw turning fixture, ensuring versatility and efficiency in operations. Each jaw weighs 2.9 lb, providing stability and durability for prolonged use. Ideal for both consumer and institutional buyers, these jaw configurations, including pie-shaped variants, can be customized upon request to meet specific project needs.
Product Specifications
Specifications A Dimension
1.50 in | 38.1 mm
Specifications B Dimension
3.95 in | 100.3 mm
Specifications Chuck
8 inch
Specifications C Dimension
2.00 in | 50.8 mm
Specifications Item No
63 085 200
Specifications Material
A-2
Specifications Weight
2.9 lb | 1.3 kg
