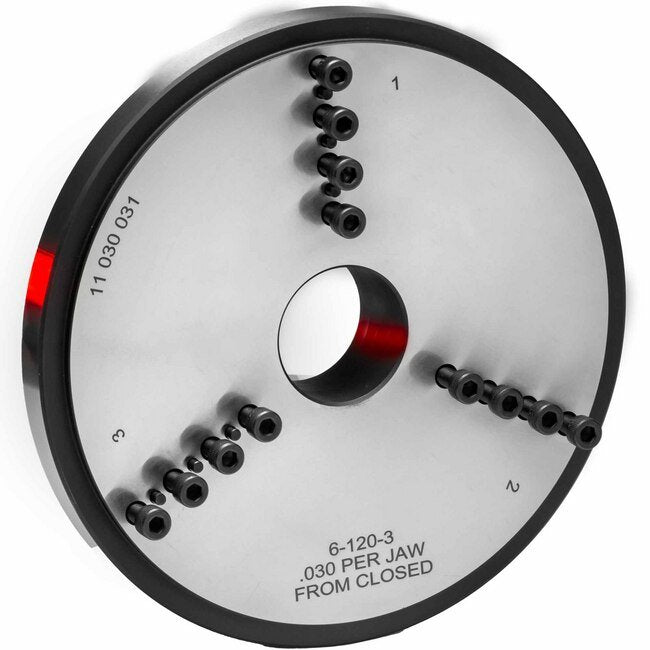

The Precision Air Chuck Jaws Turning Fixture replicates the locating pattern of standard air chucks, enabling the rough turning of blank top jaws off the chuck with superior accuracy. Designed for precision, it is recommended to finish bore jaws on the chuck for optimal results. Featuring a chuck size of 6 inches, outside diameter of 6.25 inches, and a thickness of 1.00 inch, this fixture ensures reliable clamping at the middle of the chuck's stroke. Custom clamping positions are available upon request, enhancing flexibility for varied machining needs. Specify the chuck model when ordering to streamline the process and achieve seamless integration with existing equipment.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Chuck
6 inch
Specifications Item No
11 030 XXX
Specifications Ordering Information
Model of chuck must be specified when ordering.
Specifications Outside Dia
6.25 in | 158.8 mm
Specifications Thickness
1.00 in | 25.4 mm
