Precision Air Tube Assembly NR50
Precision Air Tube Assembly NR50
SKU:PRE-8f472f
Enhance machining precision with the non-rotating Precision Air Tube NR50, designed for high-speed applications with superior coolant flow.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Precision Air Tube Assembly NR50
$249.99
Quantity: 1
Claim Your Seller Account
Precision Air Tube Assembly NR50
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

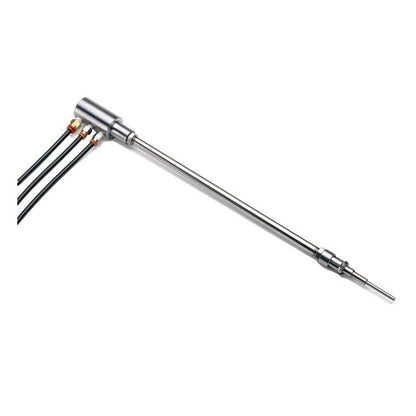

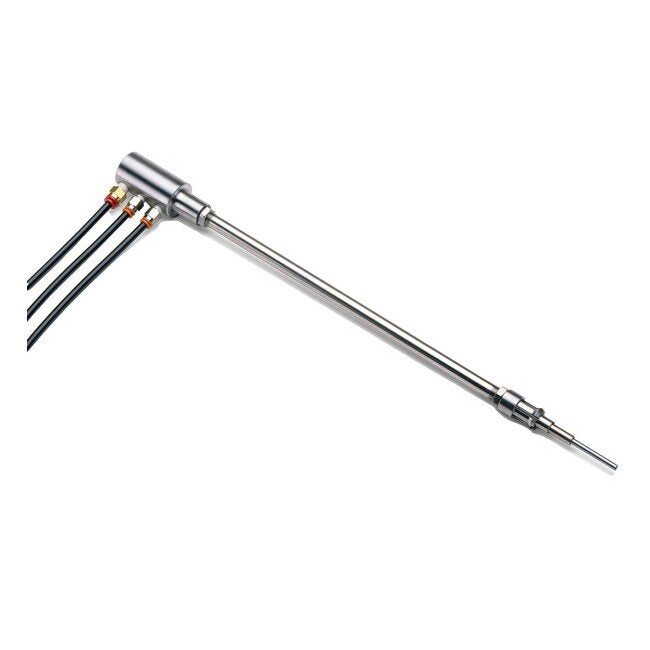

The Precision Air Tube Assembly NR50 by MicroCentric is a cutting-edge solution designed for seamless integration with HST/HS chucks. Featuring a patented non-rotating design, this air tube ensures optimal performance at high speeds up to 10,000 rpm. The NR50 boasts a three-passage configuration, enabling efficient coolant flow through the spindle and facilitating automatic lubrication. Complete with air hoses, fittings, and the required support bushing for spindle attachment, this assembly guarantees precision and reliability in machining processes.
Product Specifications
Specifications Max Speed
10,000 rpm
Specifications Ordering Information

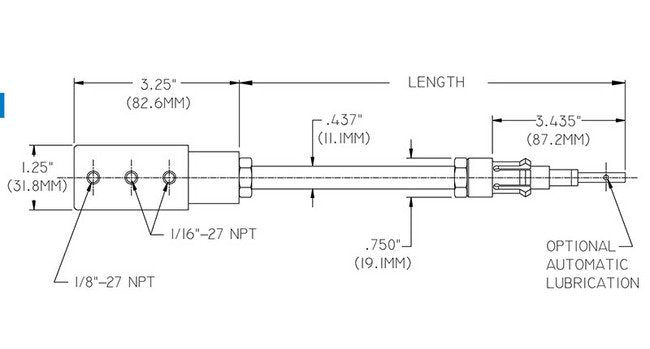

Length of air tube to be specified when ordering.
