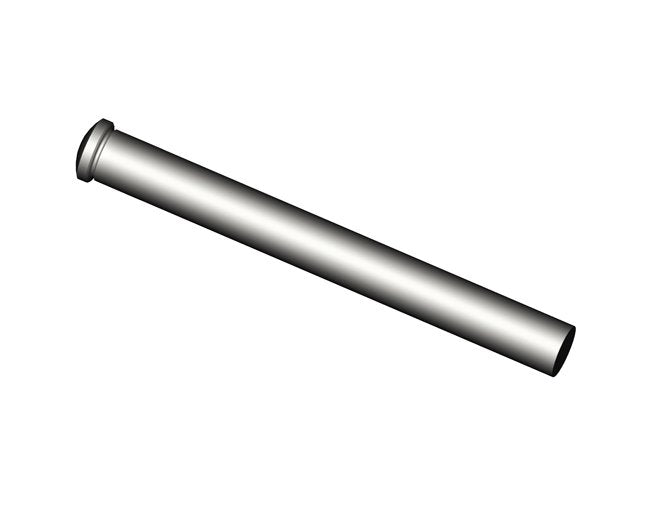

Precision Angle Pin with Radiused Heads
Precision Angle Pin with Radiused Heads
SKU:ANG-ca1989
Streamline installations with Precision Angle Pin with Radiused Heads. Made from durable H-13 steel with superior surface hardness. Ideal for efficient slide travel.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Angle Pin with Radiused Heads
$24.99
Quantity: 1
Claim Your Seller Account
Precision Angle Pin with Radiused Heads
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Angle Pin with Radiused Heads is designed to streamline installation processes by eliminating the need for angle grinding. Manufactured from H-13 steel with a surface hardness of 65-64 Rc and core hardness of 35-40 Rc, these durable pins are ground, nitrided, and polished for enhanced performance. Cut to custom lengths, these pins work seamlessly on angles to push slides efficiently, creating optimal travel. Designed for precision and reliability, these angle pins offer superior quality and efficiency in various industrial applications.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

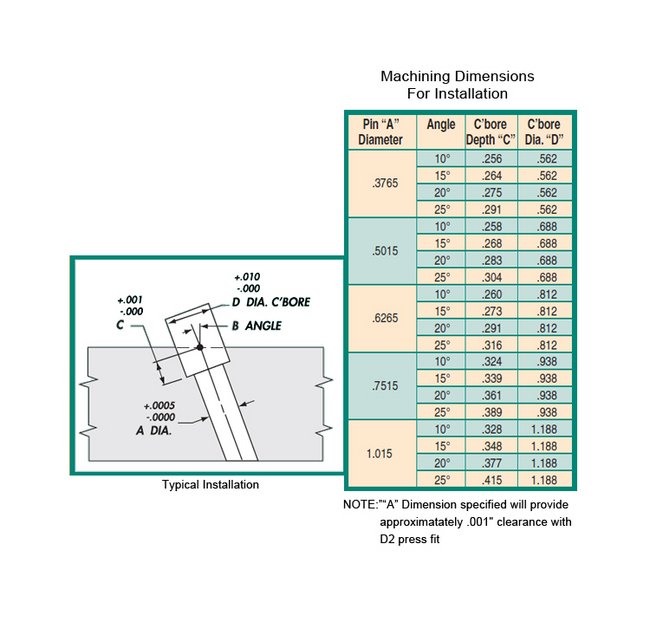

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

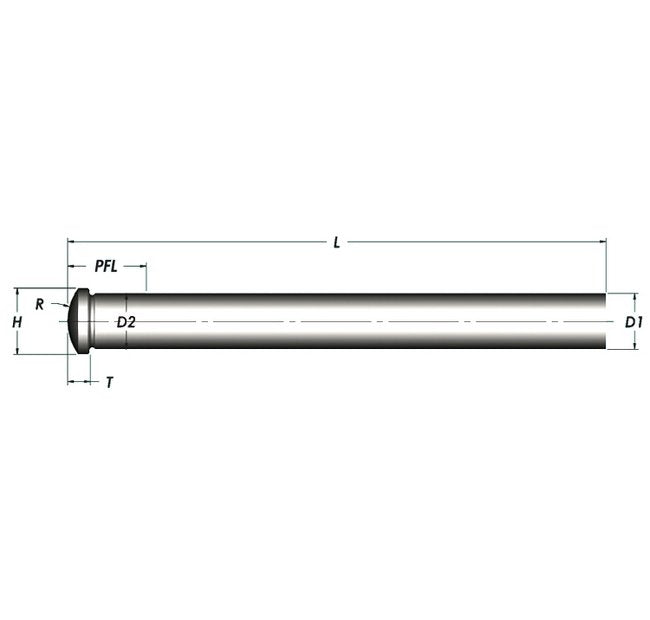

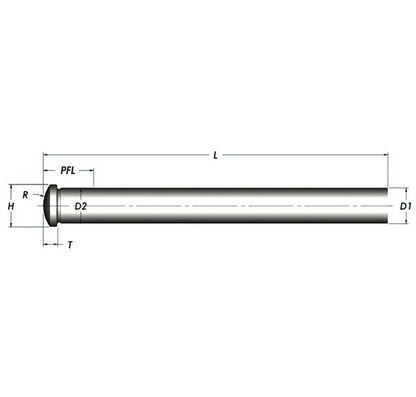

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.4990 in
Specifications Dimension D2 00000 00005
0.5015 in
Specifications Dimension H 0000 0010
0.625 in
Specifications Dimension L 050 000
6 in
Specifications Dimension Pfl 000 006
7/8 in
Specifications Dimension R Sph Rad
0.500 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
