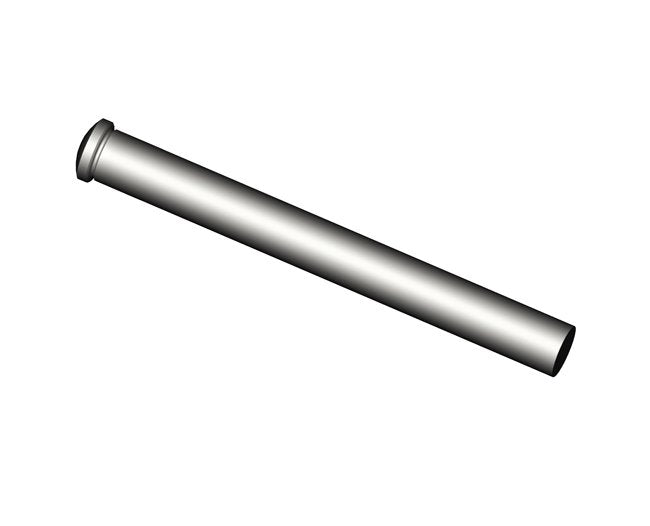

Precision Angle Pin with Radiused Heads
Precision Angle Pin with Radiused Heads
SKU:ANG-872550
Precision Angle Pin with Radiused Heads - Crafted from premium H-13 steel, pre-machined for easy installation on angles, ensuring durable and precise operations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Precision Angle Pin with Radiused Heads
$29.99
Quantity: 1
Claim Your Seller Account
Precision Angle Pin with Radiused Heads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Precision Angle Pin with Radiused Heads is expertly crafted from H-13 steel, meeting strict surface and core hardness standards of 65-64 Rc and 35-40 Rc respectively. Ground, nitrided, and polished, these pins come with a spherical radius pre-machined head, eliminating the need for angle grinding. Perfect for precise installations, these pins offer exceptional durability and performance on angles, ensuring smooth slide operations. Cut to required lengths for customized applications, these pins deliver unmatched reliability in pushing and creating slide travel.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

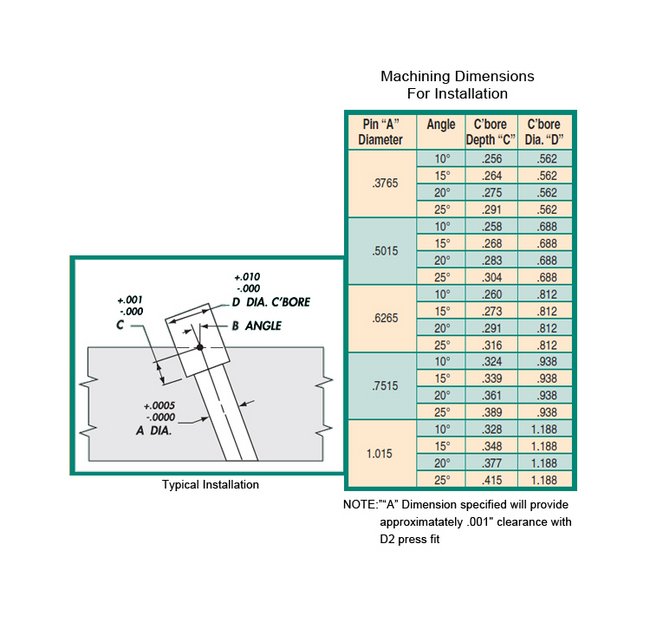

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

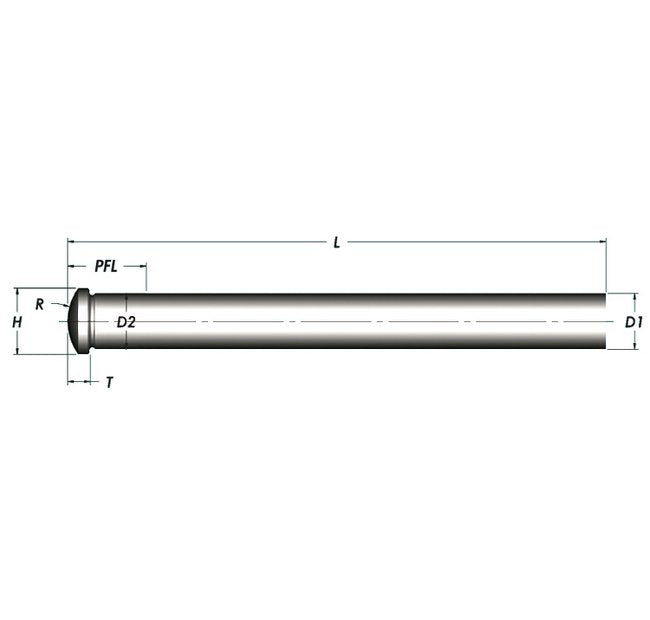

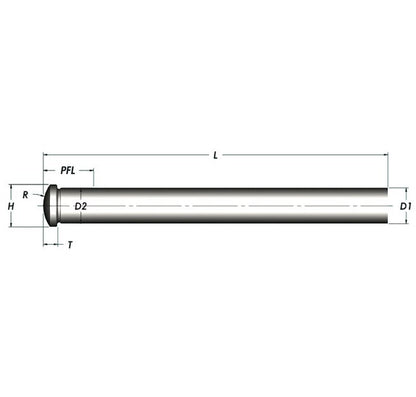

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.3740 in
Specifications Dimension D2 00000 00005
0.3765 in
Specifications Dimension H 0000 0010
0.500 in
Specifications Dimension L 050 000
10 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
0.375 in
Specifications Dimension T 0000 0005
0.250 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
