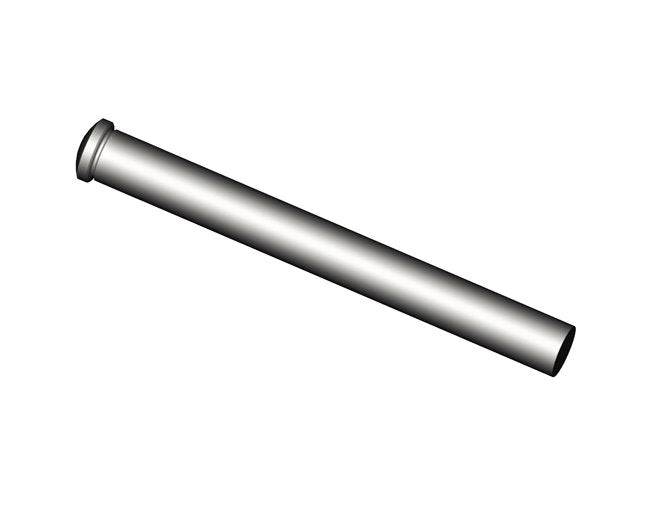

Precision Angle Pin with Radiused Heads - H-13 Steel
Precision Angle Pin with Radiused Heads - H-13 Steel
SKU:ANG-2fefd8
Premium H-13 steel angle pins with radiused heads for easy installation and exceptional durability in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Angle Pin with Radiused Heads - H-13 Steel
$24.99
Quantity: 1
Claim Your Seller Account
Precision Angle Pin with Radiused Heads - H-13 Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your industrial projects with these precision angle pins made from H-13 steel. Engineered with a spherical radius on the head to eliminate angle grinding, ensuring easy installation and optimal performance. With a surface hardness of 65-64 Rc and core hardness of 35-40 Rc, these angle pins are ground, nitrided, and polished for durability and reliability. Cut to custom lengths for precise slide travel, these pins work seamlessly on angles to facilitate smooth operations in your applications.
Product Specifications
Features 0
Manufactured from H-13 steelSurface hardness 65-64 RcCore hardness 35-40 RcGround, nitrided and polished
Installation Notes 0

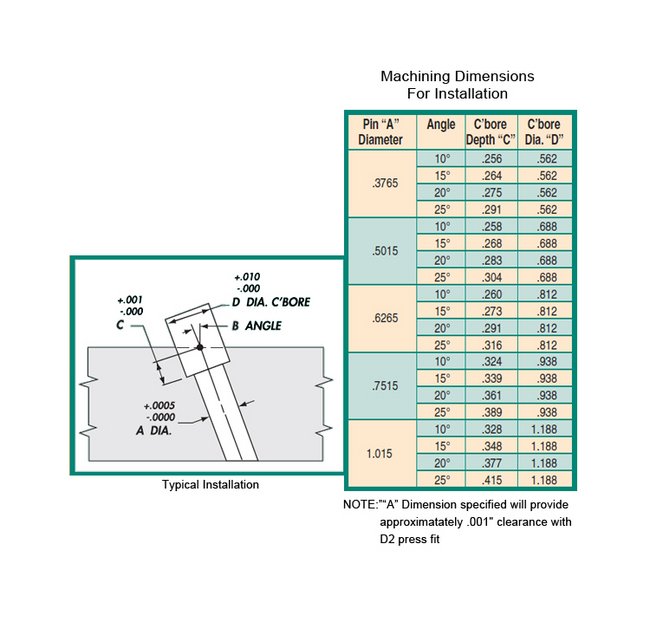

Cut angle pin to length as required to obtain required travel on the slide. The angle pin works on angle in clearance hole in slide to push the slide & create travel.

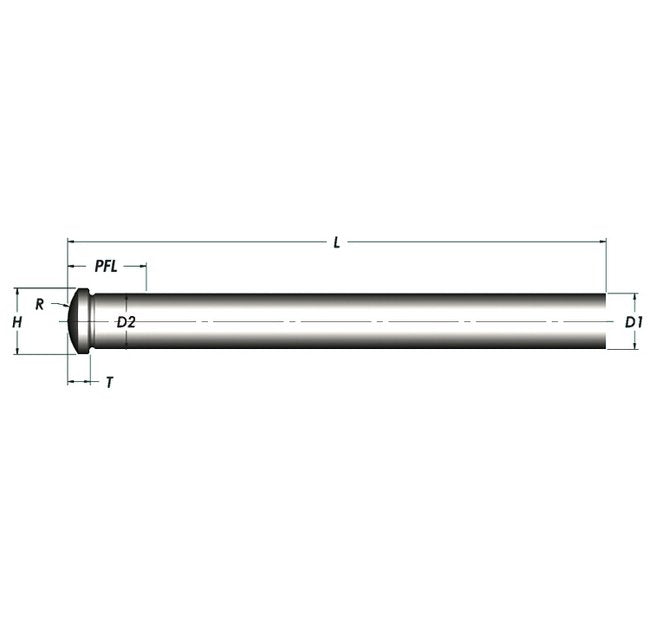

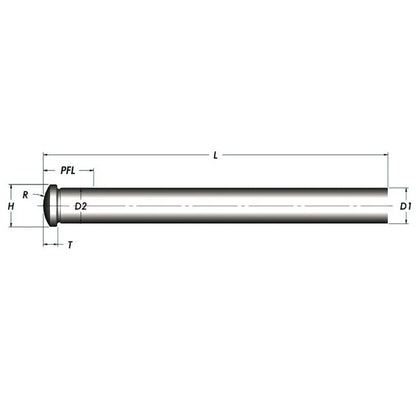

Specifications Core Hardness
35-40 Rockwell C
Specifications Diameter 00000 00005
0.9990 in
Specifications Dimension D2 00000 00005
1.0015 in
Specifications Dimension H 0000 0010
1.125 in
Specifications Dimension L 050 000
10 in
Specifications Dimension Pfl 000 006
1-3/8 in
Specifications Dimension R Sph Rad
1.00 in
Specifications Dimension T 0000 0005
0.312 in
Specifications Manufacturer
DMS
Specifications Material
H-13 Steel
Specifications Surface Hardness
65-64 Rockwell C
