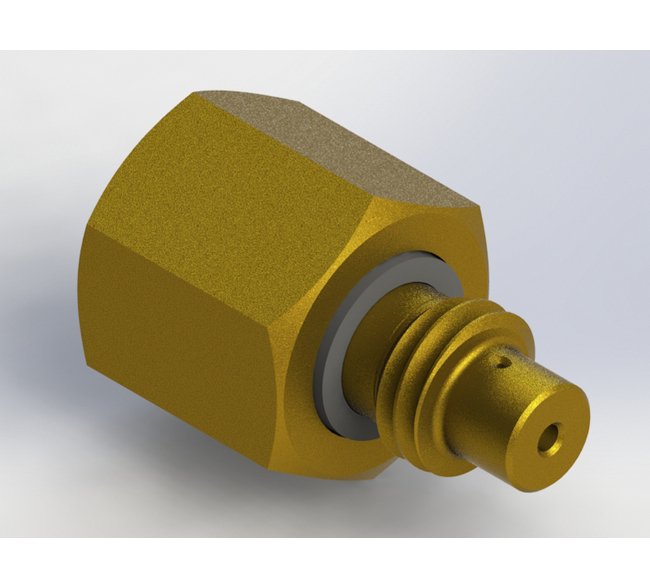

Precision Ball Type Fixed Flow Control Adapter UNF/UNC - Brass
Precision Ball Type Fixed Flow Control Adapter UNF/UNC - Brass
SKU:FLO-7017a6
Control flow precisely with the Brass Precision Ball Type Fixed Flow Control Adapter UNF/UNC. Ideal for one-directional free flow and metered flow applications. Meet institutional standards effortlessly.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Precision Ball Type Fixed Flow Control Adapter UNF/UNC - Brass
$24.99
Quantity: 1
Claim Your Seller Account
Precision Ball Type Fixed Flow Control Adapter UNF/UNC - Brass
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Ball Type Fixed Flow Control Adapter UNF/UNC in Brass is a cost-effective solution featuring a stainless steel ball and precision orifice for controlled flow. With a 0.009 in orifice diameter and Viton seal, this adapter ensures reliable performance in both directions. Designed to meet the stringent requirements of institutional buyers, it offers a maximum temperature of 180 ºF, 125 psig cracking pressure, and 10-32 UNF Male/Female connections.
Product Specifications
Dimensions Orifice Diameter
0.009 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Low Flow Coefficient
0.0019
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
9
Specifications Screened
None
Specifications Seal Material
Viton
