Precision Ball Type Fixed Flow Controls - UNF/UNC Adapter

Name: Precision Ball Type Fixed Flow Controls - UNF/UNC Adapter
Brand: O'Keefe Controls Co.
SKU: FLO-267d13
Price: 24.99 USD
Availability: OutOfStock

SKU:FLO-267d13

Achieve precise flow control with our Precision Ball Type Fixed Flow Controls - ideal for institutional use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

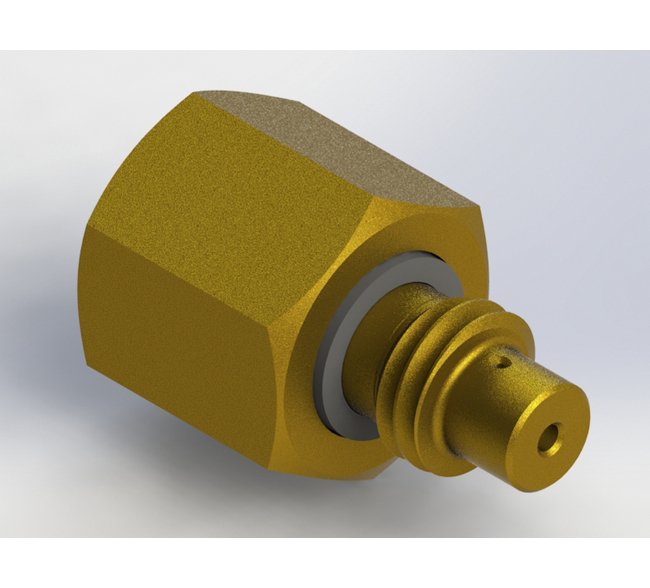

The Precision Ball Type Fixed Flow Controls - UNF/UNC Adapter offers precision flow regulation with a stainless steel or buna-N ball and a precise orifice, ensuring free flow in one direction and metered flow in the opposite direction. Constructed with brass material, Viton seals, and Buna-N ball, this product guarantees durability and reliable performance. With a nominal orifice size of 0.0050 inches and a low flow coefficient of 0.00061, it provides accurate and consistent flow control. Suitable for institutional applications requiring precise fluid management.

Product Specifications

Dimensions Orifice Diameter

0.0050 in

Dimensions Total Length

0.545 in

Dimensions Width Across Flats Hex

5/16 in

Flow Data Low Flow Coefficient

0.00061

Specifications Ball Material

Buna-N

Specifications Connection A

10-32 UNF Male

Specifications Connection B

10-32 UNF Female

Specifications Cracking Pressure

125 psig

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

125 psig

Specifications Maximum Temperature

180 ÂºF

Specifications Nominal Orifice Size

Specifications Screened

None

Specifications Seal Material

Viton

Precision Ball Type Fixed Flow Controls - UNF/UNC Adapter
