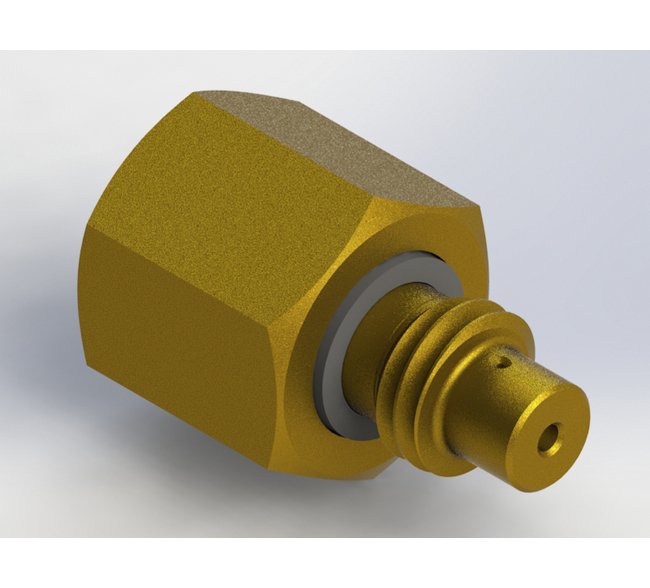

Precision Ball Type Flow Controls - UNF/UNC Adapter Set, 10-32 Threads
Precision Ball Type Flow Controls - UNF/UNC Adapter Set, 10-32 Threads
SKU:FLO-094800
Enhance fluid control precision with our Precision Ball Type Flow Controls - UNF/UNC Adapter Set. Crafted from durable brass with Viton seals, it features a Buna-N ball for reliable performance and precise 0.006" orifice.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Precision Ball Type Flow Controls - UNF/UNC Adapter Set, 10-32 Threads
$34.99
Quantity: 1
Claim Your Seller Account
Precision Ball Type Flow Controls - UNF/UNC Adapter Set, 10-32 Threads
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance fluid control precision with our Precision Ball Type Flow Controls - UNF/UNC Adapter Set. Crafted from durable brass with Viton seals, it features a Buna-N ball for reliable performance. With a precise 0.006" orifice, and 125 psig cracking pressure, it ensures controlled flow in any direction. Whether for industrial or government applications, this set guarantees efficient flow regulation and compatibility with 10-32 UNF fittings.
Product Specifications
Dimensions Orifice Diameter
0.006 in
Dimensions Total Length
0.545 in
Dimensions Width Across Flats Hex
5/16 in
Flow Data Low Flow Coefficient
0.00086
Specifications Ball Material
Buna-N
Specifications Connection A
10-32 UNF Male
Specifications Connection B
10-32 UNF Female
Specifications Cracking Pressure
125 psig
Specifications Material
Brass
Specifications Maximum Operating Pressure Gauge
125 psig
Specifications Maximum Temperature
180 ºF
Specifications Nominal Orifice Size
6
Specifications Screened
None
Specifications Seal Material
Viton
