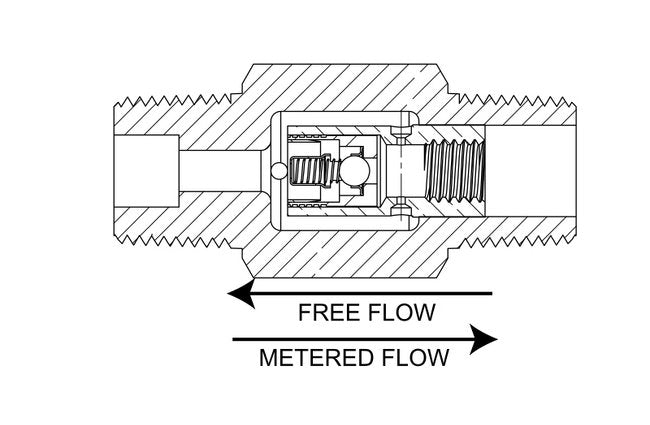

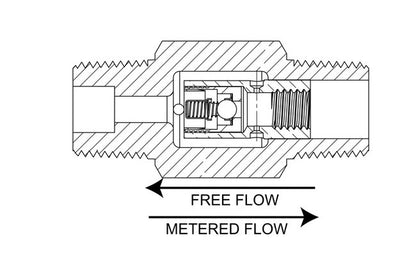

The Precision Ball Type NPT Fixed Flow Controls are expertly crafted with an all-metal construction, ensuring long-lasting durability and reliable performance. These controls feature a unique parallel design of a ball check valve and a precision orifice, enabling free flow in one direction and metered flow in the other. With a choice of cracking pressure and tamperproof orifice, they offer high-pressure capacity for a wide range of liquids and gases. Ideal for industrial applications, these controls are available in brass and stainless steel options, meeting stringent quality standards.
Product Specifications
Dimensions Orifice Diameter
0.0102 in
Dimensions Total Length
1.4 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity
Flow Data Air Flow At 100 Psig
346 to 662 ft³/h
Flow Data Water Flow At 100 Psig
0.8 to 1.6 gpm
Specifications Assembly Forward Cv
0.084
Specifications Ball Material
304 SS
Specifications Check Valve Cv
0.081
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv Ratio Forward Cv Return Cv
33.40
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Nominal Orifice Size
10
Specifications Orifice Cv Return
0.0025
Specifications Screened
None
