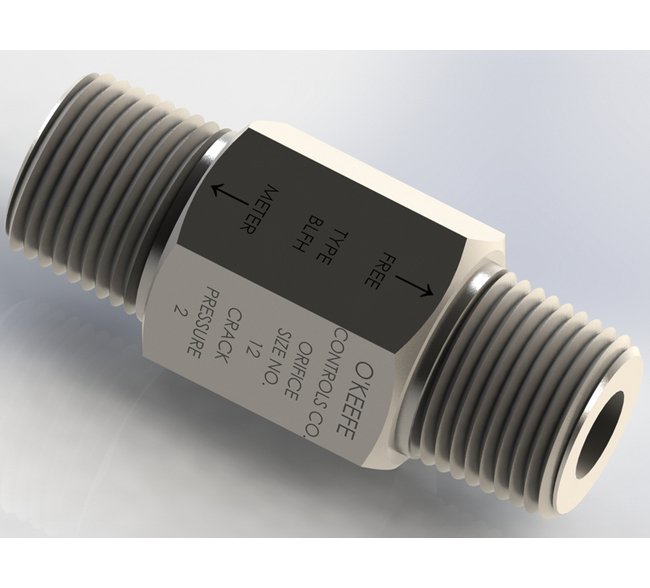

Precision Ball Type NPT Nipple Flow Control Valve

Name: Precision Ball Type NPT Nipple Flow Control Valve
Brand: O'Keefe Controls Co.
SKU: FLO-4df6b4
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-4df6b4

Achieve precise flow control with our all-metal Precision Ball Type NPT Nipple Valve, suitable for liquids and gases.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

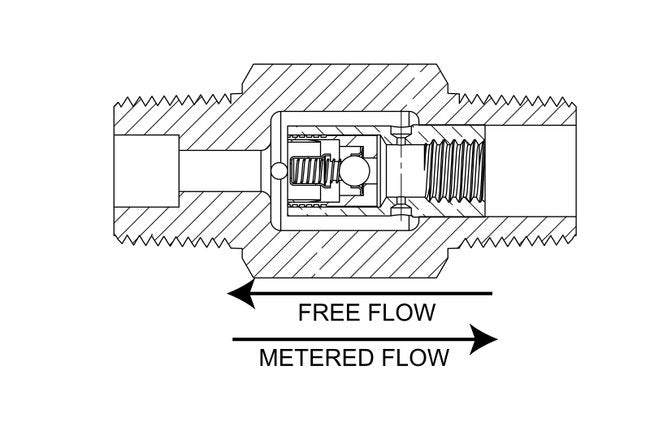

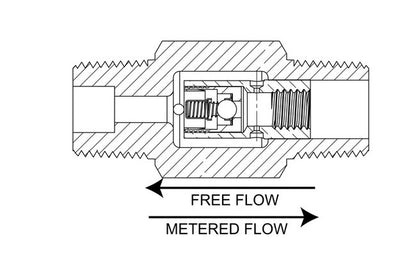

Experience precise flow control with our Precision Ball Type NPT Nipple Flow Control Valve. This product features an all-metal construction with a ball check valve and precision orifice for optimal performance. Enjoy free flow in one direction and metered flow in the opposite direction, suitable for liquids and gases. With a choice of cracking pressures, high pressure capacity, and tamperproof orifice, this valve ensures long-lasting operation. Ideal for a variety of applications, this valve is available in brass or stainless steel options to meet your specific needs.

Product Specifications

Dimensions Orifice Diameter

0.041 in

Dimensions Total Length

1.4 in

Dimensions Width Across Flats Hex

9/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

346 to 662 ftÂ³/h

Flow Data Water Flow At 100 Psig

0.8 to 1.6 gpm

Specifications Assembly Forward Cv

0.119

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.081

Specifications Connection A

1/8" NPT Male

Specifications Connection B

1/8" NPT Male

Specifications Cracking Pressure

0 psig

Specifications Cv Ratio Forward Cv Return Cv

3.13

Specifications Material

303 SS

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.038

Specifications Screened

None

Precision Ball Type NPT Nipple Flow Control Valve
