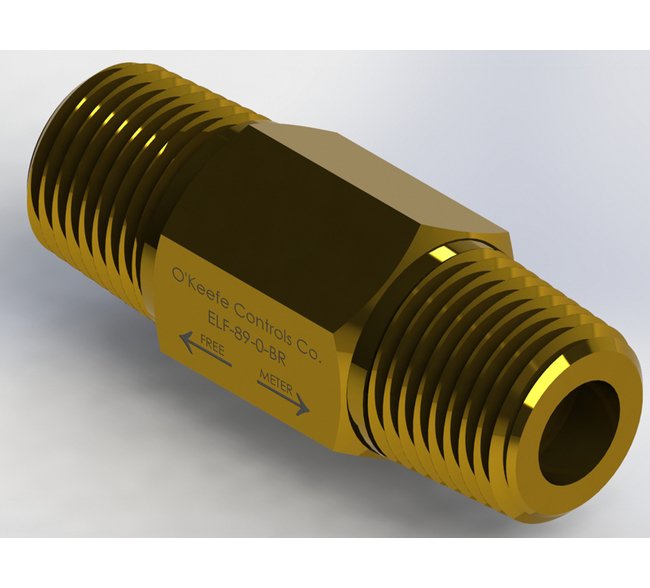

Precision Ball Type NPT Nipple Flow Control Valve

Name: Precision Ball Type NPT Nipple Flow Control Valve
Brand: O'Keefe Controls Co.
SKU: FLO-89f66c
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-89f66c

Optimize flow control with our Precision Ball Type NPT Nipple Valve for precise metering and high-pressure capacity. Trusted quality for fluids & gases.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

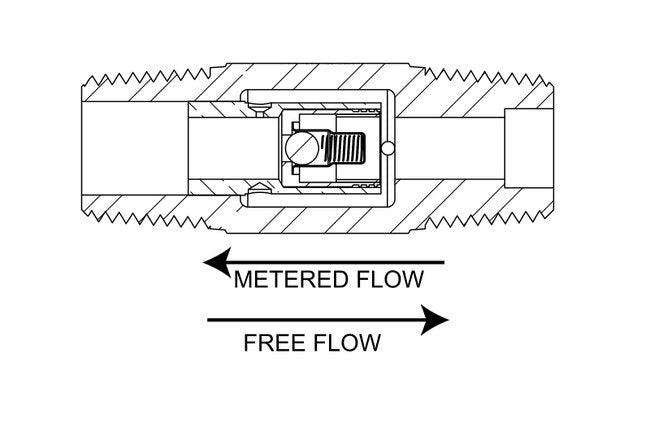

Enhance fluid and gas control with our Precision Ball Type NPT Nipple Flow Control Valve. Featuring a durable brass construction and a high-pressure capacity, this valve offers precise metered flow in one direction and free flow in the other. With a tamperproof orifice and choice of cracking pressure, it ensures long-lasting, reliable performance. Ideal for both liquids and gases, this valve meets stringent industry standards for quality and efficiency.

Product Specifications

Dimensions Orifice Diameter

0.018 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.198

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

15 psig

Specifications Cv Ratio Forward Cv Return Cv

27.16

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.0073

Specifications Screened

None

Precision Ball Type NPT Nipple Flow Control Valve
