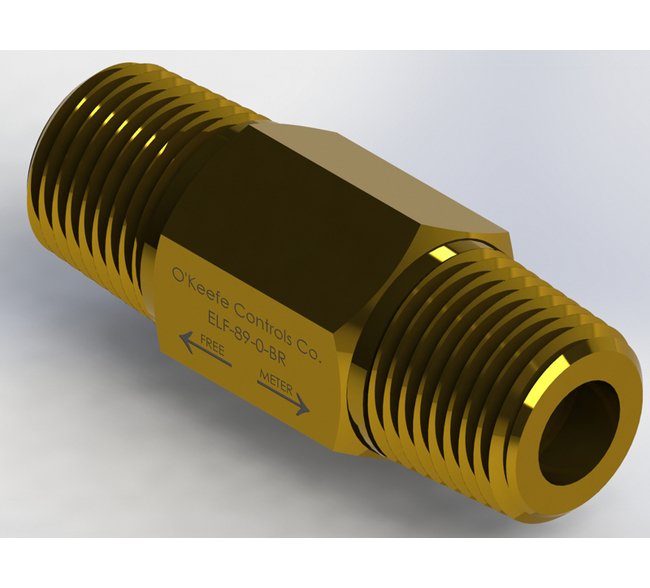

Precision Ball Type NPT Nipple Flow Controls

Name: Precision Ball Type NPT Nipple Flow Controls
Brand: O'Keefe Controls Co.
SKU: FLO-0e284b
Price: 39.99 USD
Availability: OutOfStock

SKU:FLO-0e284b

Achieve precise fluid control with our brass Precision Ball Type NPT Nipple Flow Controls, ideal for liquids and gases.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance fluid control with our Precision Ball Type NPT Nipple Flow Controls. Featuring an orifice diameter of 0.042 inches and brass construction, these controls offer precise metering and high-pressure capacity. With a tamperproof orifice and multiple connection options, they ensure reliable performance for both liquid and gas applications.

Product Specifications

Dimensions Orifice Diameter

0.042 in

Dimensions Total Length

1.91 in

Dimensions Width Across Flats Hex

11/16 in

Features Features

All metal construction Long life operation Choice of cracking pressure Tamperproof Orifice High Pressure Capacity

Flow Data Air Flow At 100 Psig

809 to 1650 ftÂ³/h

Flow Data Water Flow At 100 Psig

1.9 to 3.9 gpm

Specifications Assembly Forward Cv

0.230

Specifications Ball Material

304 SS

Specifications Check Valve Cv

0.191

Specifications Connection A

1/4" NPT Male

Specifications Connection B

1/4" NPT Female

Specifications Cracking Pressure

2 psig

Specifications Cv Ratio Forward Cv Return Cv

5.90

Specifications Material

Brass

Specifications Maximum Operating Pressure Gauge

200 psig

Specifications Nominal Orifice Size

Specifications Orifice Cv Return

0.039

Specifications Screened

None

Precision Ball Type NPT Nipple Flow Controls
