Precision Blank Pie Jaws Set
Precision Blank Pie Jaws Set
SKU:PRE-458565
Ensure precise and secure clamping with our Precision Blank Pie Jaws Set. Crafted from high-grade 8620 material, these pie jaws are ideal for fragile workpieces.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Precision Blank Pie Jaws Set
$149.99
Quantity: 1
Claim Your Seller Account
Precision Blank Pie Jaws Set
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

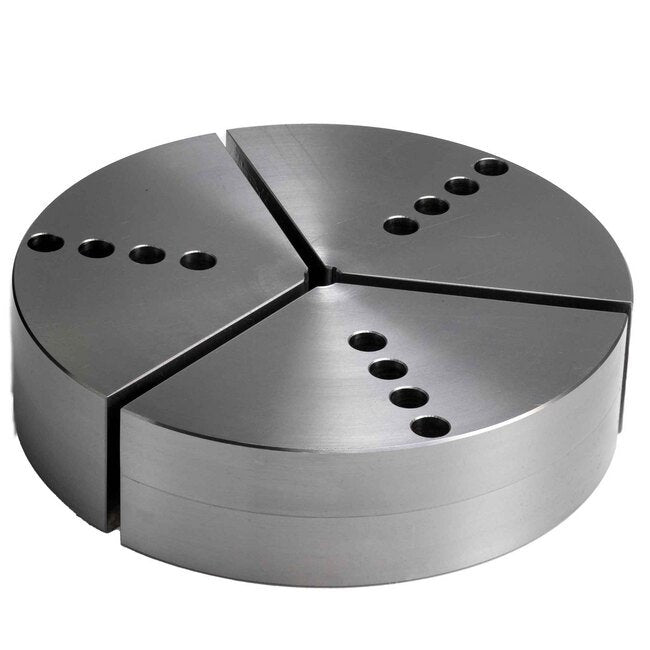

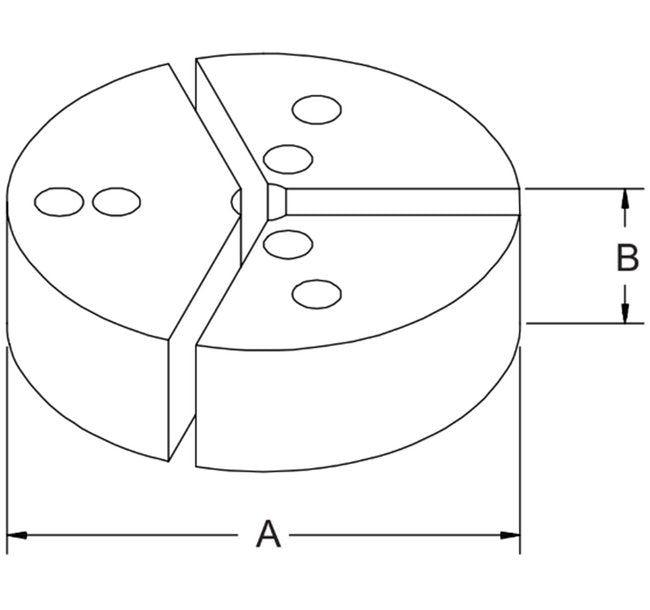

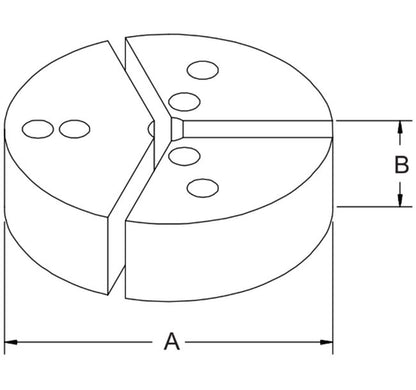

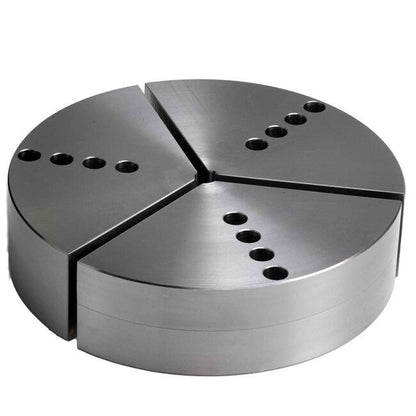

The Precision Blank Pie Jaws Set is designed to provide full circle contact with delicate and thin walled workpieces, reducing the risk of distortion during clamping. Crafted from high-grade 8620 material, these pie jaws offer robust support and durability. With dimensions of 5.95 in A dimension, 1.50 in B dimension, and 0.88 in bore, this set of 3 pie jaws ensures secure and precise workpiece grip. Ideal for Precision Air Chucks applications, these blank pie jaws deliver reliability and accuracy, meeting the stringent demands of industrial machining operations.
Product Specifications
Specifications A Dimension
5.95 in | 151.1 mm
Specifications Bore
0.88 in | 22.4 mm
Specifications B Dimension
1.50 in | 38.1 mm
Specifications Chuck
6 inch | HST6
Specifications Item No
07 065 151
Specifications Material
8620
Specifications Weight
10.4 lb | 4.7 kg
