Precision Blank Pie Shaped Chuck Jaws Set
Precision Blank Pie Shaped Chuck Jaws Set
SKU:PRE-1853dc
Enhance workpiece stability with our durable Precision Blank Pie Shaped Chuck Jaws Set. Ideal for delicate parts, these jaws ensure secure clamping and full-circle contact for precision machining.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Precision Blank Pie Shaped Chuck Jaws Set
$149.99
Quantity: 1
Claim Your Seller Account
Precision Blank Pie Shaped Chuck Jaws Set
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

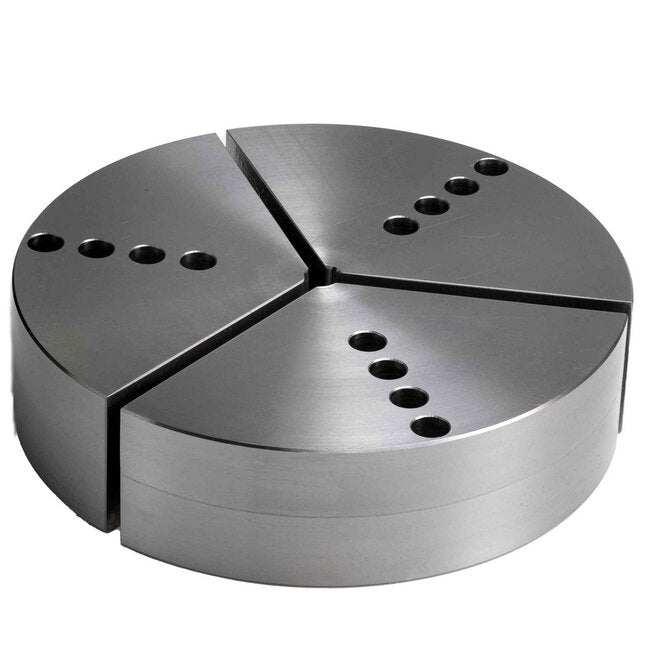

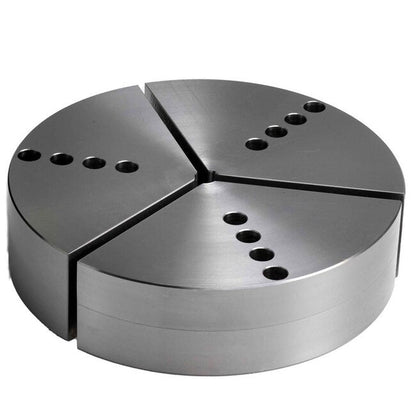

Experience enhanced workpiece stability and protection with our Precision Blank Pie Shaped Chuck Jaws Set. Crafted from durable 2024 material, these pie jaws ensure full-circle contact, ideal for delicate and thin-walled parts prone to distortion during clamping. With an 8-inch chuck size and precise dimensions conforming to industry standards, this set of three blank pie jaws guarantees reliable performance and versatility for various applications. Contact our sales department for customization options and additional configurations.
Product Specifications

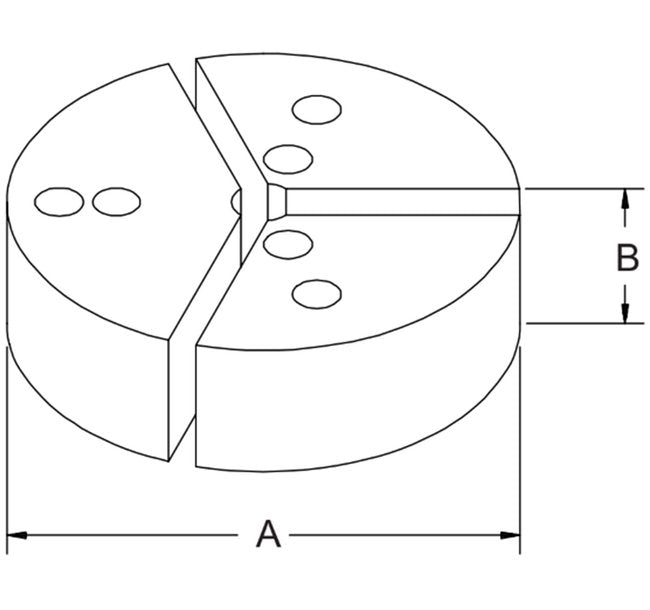

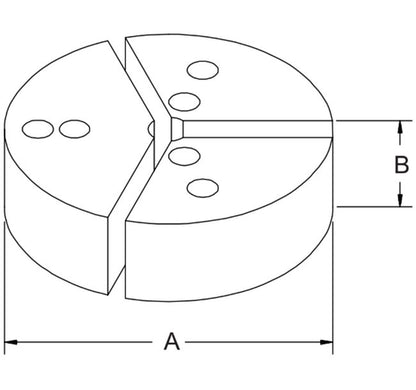

Specifications A Dimension
7.95 in | 201.9 mm
Specifications Bore
1.25 in | 31.8 mm
Specifications B Dimension
2.00 in | 50.8 mm
Specifications Chuck
8 inch
Specifications Item No
07 081 201
Specifications Material
2024
Specifications Weight
8.8 lb | 4 kg
