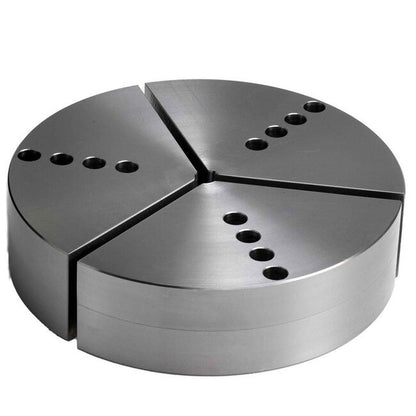

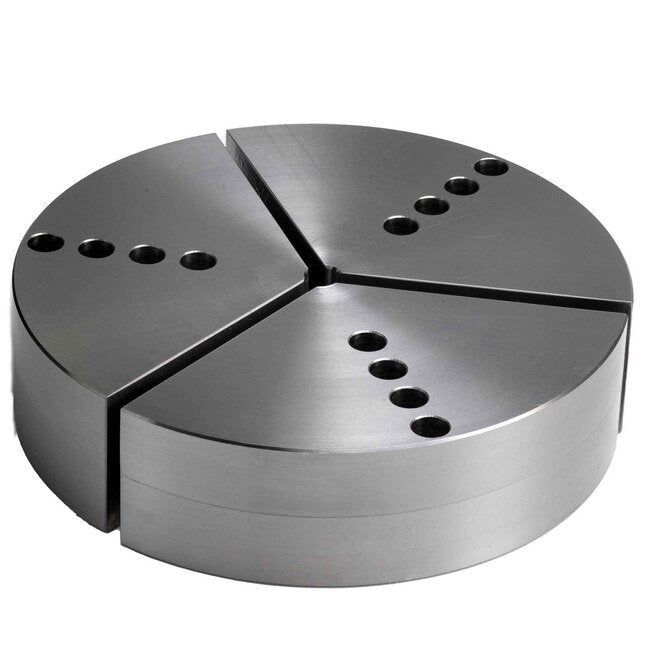

Precision Blank Pie Shaped Chuck Jaws Set
Precision Blank Pie Shaped Chuck Jaws Set
SKU:PRE-27a3c9
Enhance precision machining with our Blank Pie Shaped Chuck Jaws Set, ensuring minimal workpiece distortion while providing full-circle contact. Set of 3 pieces.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Precision Blank Pie Shaped Chuck Jaws Set
$189.99
Quantity: 1
Claim Your Seller Account
Precision Blank Pie Shaped Chuck Jaws Set
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your precision engineering with our Blank Pie Shaped Chuck Jaws Set, designed to provide full-circle contact with workpieces, ideal for fragile and thin-walled parts. Crafted from high-quality 2024 material, these jaws ensure minimal distortion during clamping. With a Chuck size of 10 inches and precise dimensions, our jaws offer reliability and accuracy for your machining needs. Each set includes 3 pieces tailored for your machining excellence.
Product Specifications

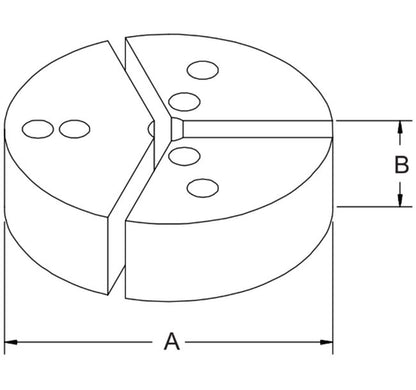

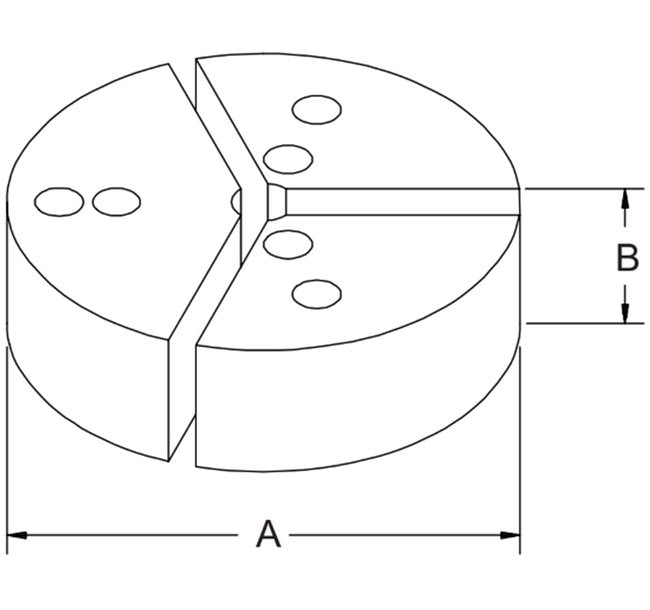

Specifications A Dimension
9.95 in | 252.7 mm
Specifications Bore
1.25 in | 31.8 mm
Specifications B Dimension
2.00 in | 50.8 mm
Specifications Chuck
10 inch
Specifications Item No
07 101 201
Specifications Material
2024
Specifications Weight
14.1 lb | 6.4 kg
