Precision Blank Pie Shaped Jaws Set
Precision Blank Pie Shaped Jaws Set
SKU:PRE-548305
Achieve precise clamping with our 6-inch Precision Blank Pie Shaped Jaws Set, designed for delicate parts to prevent distortion. Durable 8620 material for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Precision Blank Pie Shaped Jaws Set
$299.99
Quantity: 1
Claim Your Seller Account
Precision Blank Pie Shaped Jaws Set
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

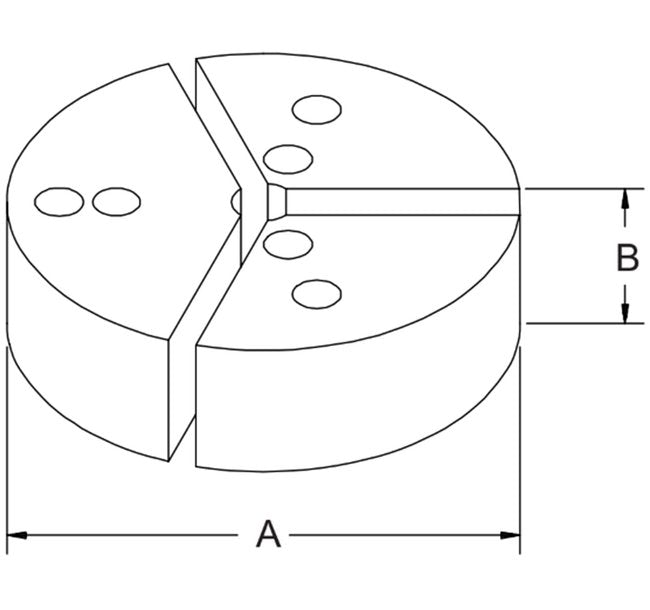

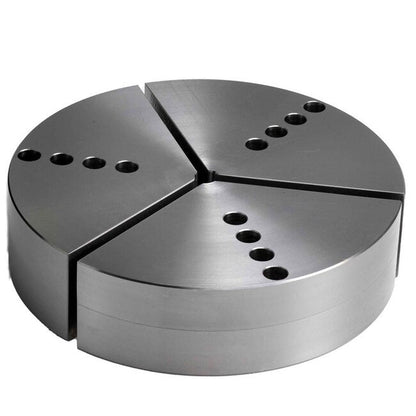

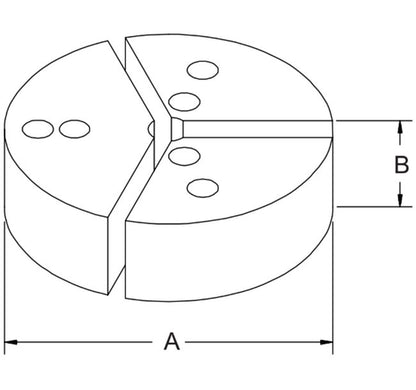

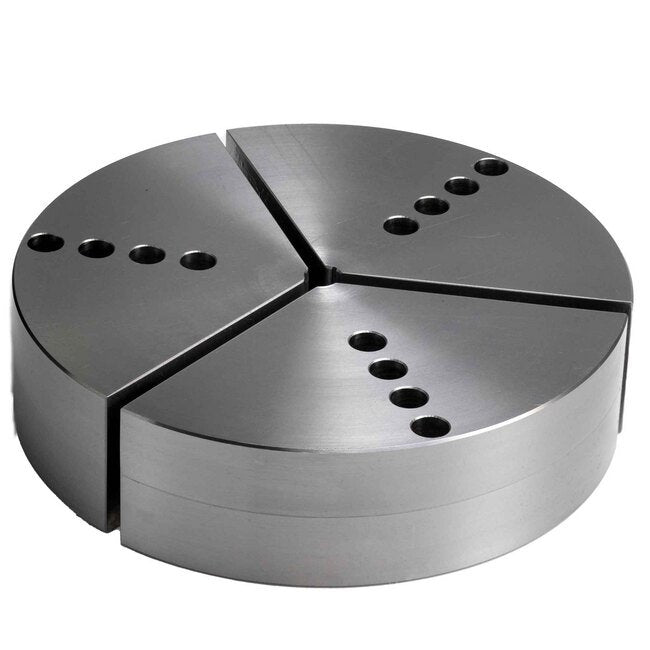

Enhance your precision machining operations with our Precision Blank Pie Shaped Jaws Set. Crafted from durable 8620 material, these jaws ensure full circle contact with the workpiece, ideal for delicate and thin-walled parts susceptible to distortion during clamping. With a Chuck size of 6 inches (HST6), A Dimension of 5.95 inches, B Dimension of 2.00 inches, and a weight of 13.9 pounds, these jaws offer reliability and accuracy for your machining needs. Expand your possibilities with customizable configurations and materials, meeting the stringent requirements of industrial and institutional applications.
Product Specifications
Specifications A Dimension
5.95 in | 151.1 mm
Specifications Bore
0.88 in | 22.4 mm
Specifications B Dimension
2.00 in | 50.8 mm
Specifications Chuck
6 inch | HST6
Specifications Item No
07 065 201
Specifications Material
8620
Specifications Weight
13.9 lb | 6.3 kg
