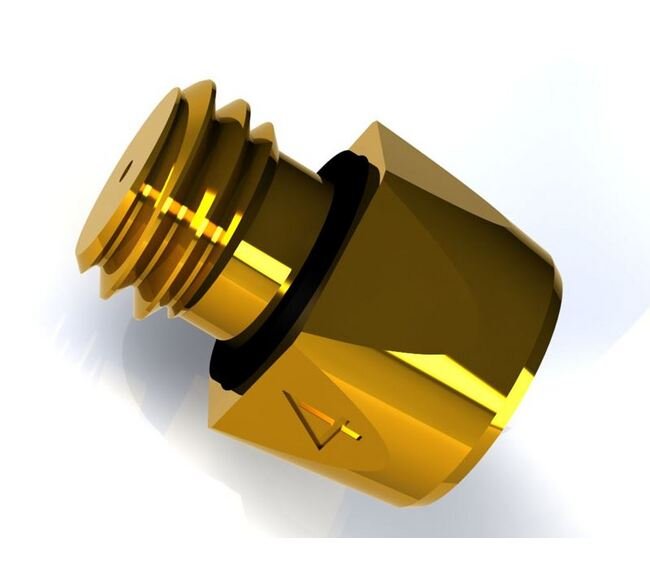

Precision Brass Orifice Assembly with Viton Seal - 10-32 UNF Bleed Plug
Precision Brass Orifice Assembly with Viton Seal - 10-32 UNF Bleed Plug
SKU:PRE-7999b7
Enhance precision flow control with our Brass Orifice Assembly featuring Viton Seal. Ideal for gases/liquids with high accuracy & 100 psig capacity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Brass Orifice Assembly with Viton Seal - 10-32 UNF Bleed Plug
$49.99
Quantity: 1
Claim Your Seller Account
Precision Brass Orifice Assembly with Viton Seal - 10-32 UNF Bleed Plug
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Brass Orifice Assembly with Viton Seal is meticulously machined and flow tested to stringent standards, ensuring reliable performance in precision flow control applications. Featuring a Nominal Orifice Size of 0.033 inches with high accuracy, this assembly is ideal for gases or liquids, offering precise throttling and accurate timing in pneumatic or hydraulic circuits. With a maximum operating pressure of 100 psig, this assembly provides exceptional CV of 0.025 and a Taper of 7.5 degrees. Custom sizes are available upon request, meeting diverse institutional needs.
Product Specifications
Application 0
Precision Flow Control - Gases or Liquids Speed Controls - Cylinders and Actuators Accurate Timing in Pneumatic or Hydraulic Circuits Flow Restriction Accurate Throttling Snubbers - Gages and Instruments
Dimensions Orifice Diameter
0.033 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
0.335 in
Dimensions Width Across Flats Hex
1/4 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 6.42 | 5 psig: 14.4 | 10 psig: 21.1 | 15 psig: 26.1 | 20 psig: 30.3 | 25 psig: 34.5 | 30 psig: 39.0 | 40 psig: 47.7 | 50 psig: 56.4 | 60 psig: 65.0 | 70 psig: 73.9 | 80 psig: 82.6 | 90 psig: 91.5 | 100 psig: 101
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 3.03 | 5 psig (34.5 kPag): 6.80 | 10 psig (69.0 kPag): 9.98 | 15 psig (103.4 kPag): 12.3 | 20 psig (137.9 kPag): 14.3 | 25 psig (172.4 kPag): 16.3 | 30 psig (206.9 kPag): 18.4 | 40 psig (275.8 kPag): 22.5 | 50 psig (344.8 kPag): 26.6 | 60 psig (413.7 kPag): 30.7 | 70 psig (482.7 kPag): 34.9 | 80 psig (551.6 kPag): 39.0 | 90 psig (620.6 kPag): 43.2 | 100 psig (689.5 kPag): 47.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 12.1 | 20 In. Hg.: 12.1 | 30 In. Hg.: 12.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.72 | 20 In. Hg. (508 Mm. Hg.): 5.72 | 30 In. Hg. (762 Mm. Hg.): 5.72
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 9.15 | 10 In. Hg.: 11.5
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 4.32 | 10 In. Hg. (254 Mm. Hg.): 5.43
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.025 | 2 psig: 0.035 | 3 psig: 0.043 | 4 psig: 0.050 | 5 psig: 0.056 | 6 psig: 0.061 | 7 psig: 0.066 | 8 psig: 0.071 | 9 psig: 0.075 | 10 psig: 0.079 | 15 psig: 0.097 | 20 psig: 0.112 | 30 psig: 0.137 | 40 psig: 0.158 | 50 psig: 0.177 | 60 psig: 0.194 | 70 psig: 0.209 | 80 psig: 0.224 | 90 psig: 0.237 | 100 psig: 0.250
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.095 | 2 psig (13.8 kPag): 0.134 | 3 psig (20.7 kPag): 0.164 | 4 psig (27.6 kPag): 0.189 | 5 psig (34.5 kPag): 0.212 | 6 psig (41.4 kPag): 0.212 | 7 psig (48.3 kPag): 0.250 | 8 psig (55.2 kPag): 0.268 | 9 psig (62.1 kPag): 0.284 | 10 psig (69 kPag): 0.299 | 15 psig (103.4 kPag): 0.367 | 20 psig (137.9 kPag): 0.423 | 30 psig (206.9 kPag): 0.518 | 40 psig (275.8 kPag): 0.599 | 50 psig (344.8 kPag): 0.669 | 60 psig (413.7 kPag): 0.733 | 70 psig (482.7 kPag): 0.792 | 80 psig (551.6 kPag): 0.846 | 90 psig (620.6 kPag): 0.898 | 100 psig (689.5 kPag): 0.946
Specifications Connection A
10-32 UNF Male
Specifications Cv
0.025
Specifications Material
Brass
Specifications Maximum Operating Pressure
100 psig
Specifications Nominal Orifice Size
33
Specifications Screened
None
Specifications Seal Material
Viton
Specifications Taper
7.5 º
