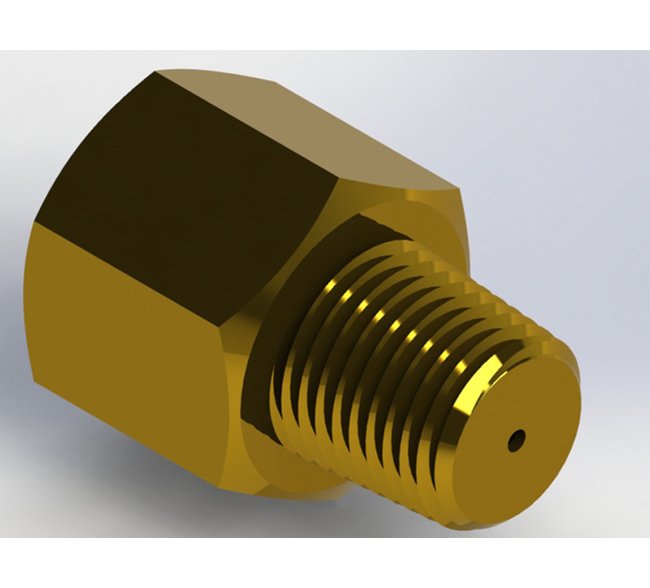

Precision Brass Pressure Snubber - NPT Pipe Adapter
Precision Brass Pressure Snubber - NPT Pipe Adapter
SKU:PRE-a81bc1
Reduce pressure fluctuations efficiently with our Precision Brass Pressure Snubber. Ideal for pressure instruments and controls.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Precision Brass Pressure Snubber - NPT Pipe Adapter
$34.99
Quantity: 1
Claim Your Seller Account
Precision Brass Pressure Snubber - NPT Pipe Adapter
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Brass Pressure Snubber - NPT Pipe Adapter is a vital in-line component that effectively reduces rapid pressure fluctuations for pressure instruments and controls. Crafted from high-quality brass, this adapter features an orifice diameter ranging from 0.004" to 0.020", ensuring optimal flow control. With a maximum operating pressure of 2000 psig, this adapter is suitable for various applications like pressure gauges, air piloted valves, hydraulic cylinders, and more. Its precision orifice design allows for tailored response times, making it an essential component in fluid systems.
Product Specifications
Application 0
Pressure snubbers are used as in-line elements to reduce rapid pressure fluctuations in the following types of components: Pressure Gages Pressure Measuring Instruments Air Piloted Valves Hydraulic Piloted Valves They can also be used to control the flow rate of fluid delivered to: Air Cylinders Hydraulic Cylinders Fluid Actuators
Dimensions Orifice Diameter
0.0040 in
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cv
0.00035
Specifications Material
Brass
Specifications Maximum Operating Pressure
2000 psig
Specifications Screened
None
