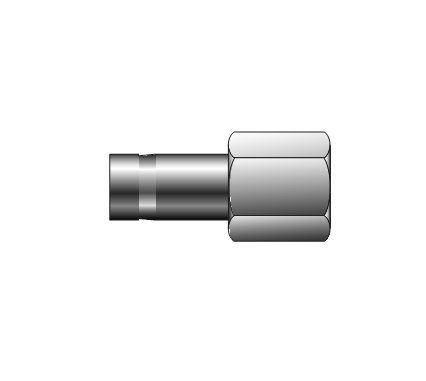

• Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread - Image 1
  • Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread - Image 2
1 2
Parker Hannifin Instrumentation Products Div. →

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

FIT-091cc5

Seamlessly connect tubes to male ISO threads with the Precision BSPP Female Gauge Adapter for reliable, quality connections.

$29.99
$29.99
Sale

Initiate Order

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

$29.99

Quantity: 1

Claim Your Seller Account

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

Precision BSPP Female Gauge Adapter - 1/4 in Tube to 1/4-19 BSPP Thread

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Precision BSPP Female Gauge Adapter seamlessly connects fractional tube ends to male ISO parallel threads with precision engineering and strict quality control. This Parker ISO Conversion Fitting, made from high-grade stainless steel and brass, ensures durable and reliable connections for components and systems. With standard pre-grooved tube stubs and the option for non-grooved fittings through Quick Response, this adapter offers versatility and performance in meeting institutional procurement standards.

Product Specifications

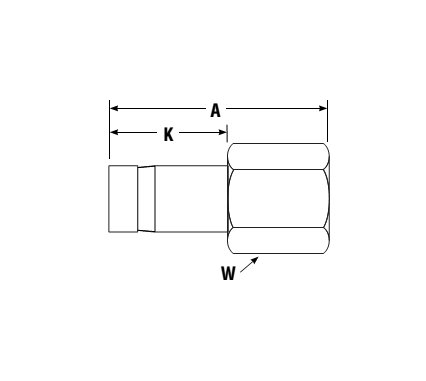

Dimensions A
1.48 in
Dimensions Bspp Thread
1/4-19
Dimensions Connection Type
Tube to FBSPP
Dimensions K
.64 in
Dimensions Min Bore
.16 in
Dimensions Tube Od
1/4 in
Dimensions W Hex
3/4 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
