The Precision CB-NB Collet Chucks with Pull Back Design offer unmatched efficiency and accuracy in clamping systems. The innovative pull-back design focuses forces towards the spindle, ensuring supreme rigidity and precision. With features like radial adjusting screws for precise alignment, low profile for enhanced tool clearance, and a life-long lubricated design, these chucks guarantee minimal maintenance and maximum durability. Engineered with hardened and precision-ground components, these chucks deliver superior accuracy and longevity for industrial applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

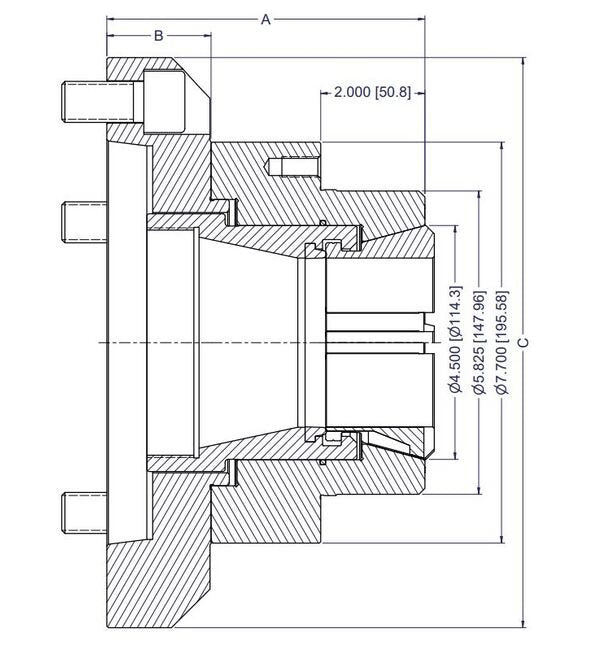

Specifications A Dimension
5.21 in | 132.33 mm
Specifications B Dimension
1.105 in | 28.07 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 080 101
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M105x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-8
Specifications Weight
40.9 lb | 18.5 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
