Experience precision clamping with our CB-NB Collet Chucks featuring a Pull Back design that maximizes efficiency and accuracy. The low profile, hardened components, and radial adjusting screws ensure peak performance. With a max clamping force of 21,132 lbs and lubricated for life design, maintenance is minimal. Achieve maximum tool clearance and rigidity for your machining needs.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

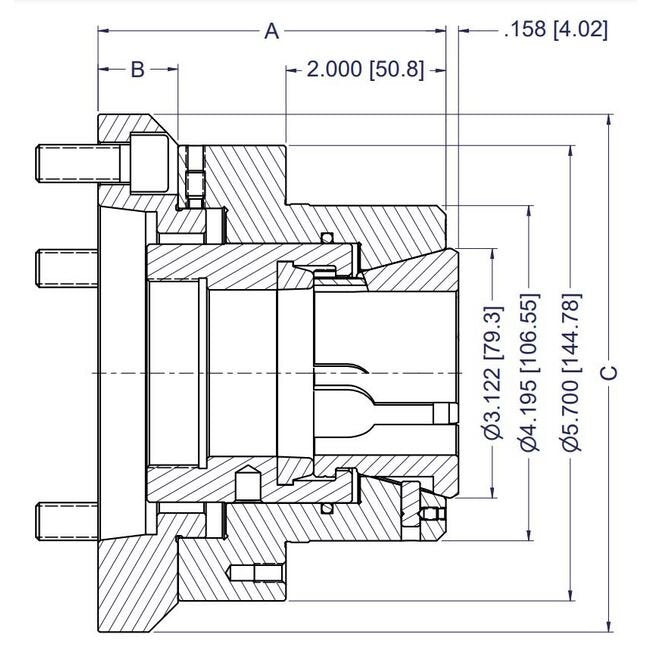

Specifications A Dimension
4.35 in | 115.39 mm
Specifications B Dimension
1 in | 25.4 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK52BZI
Specifications C Dimension
6.48 in | 164.59 mm
Specifications Item No
15 052 112
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.000 in | 52 mm
Specifications Max Clamp Force
21,132 lbs | 94 kN
Specifications Max Draw Tube Thread
M75x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
18.8 lb | 8.53 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
