The Precision CB-NB Collet Chucks with Pull Back Design offer unparalleled efficiency and accuracy in clamping operations. This series features a unique pull back design that optimizes clamping forces towards the spindle direction, ensuring maximum rigidity and precision. With radial adjusting screws for precise alignment within .0002 inches, a low profile design for increased tool clearance, and a lubricated-for-life feature for minimal maintenance, these collet chucks are engineered for high performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

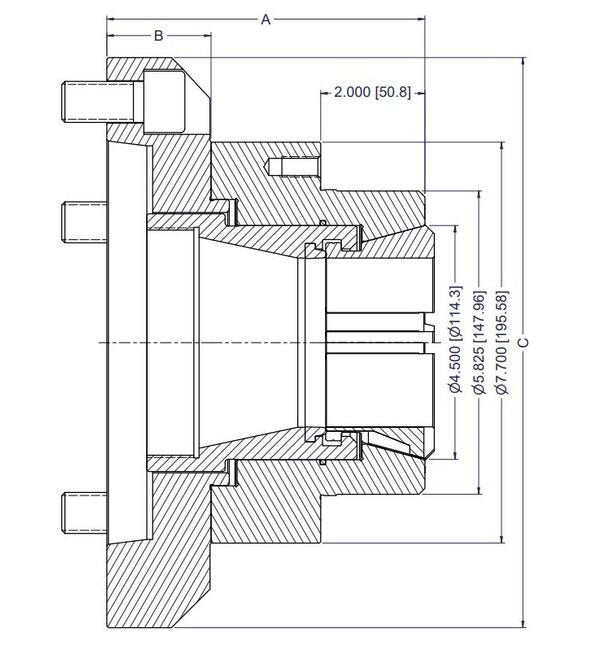

Specifications A Dimension
6.105 in | 155.07 mm
Specifications B Dimension
2 in | 50.8 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 080 102
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-11
Specifications Weight
63.92 lb | 28.99 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
