The Precision CB-NB Collet Chucks feature a Pull Back design that concentrates all forces towards the spindle, ensuring the highest accuracy and overall rigidity. With a low profile OD and radial adjusting screws for precise alignment within .0002 inches, these chucks offer increased tool clearance and maximum Z axis utilization. Built for durability and accuracy, these chucks are lubricated for life, require minimal maintenance, and are hardened and precision ground for long-lasting performance.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

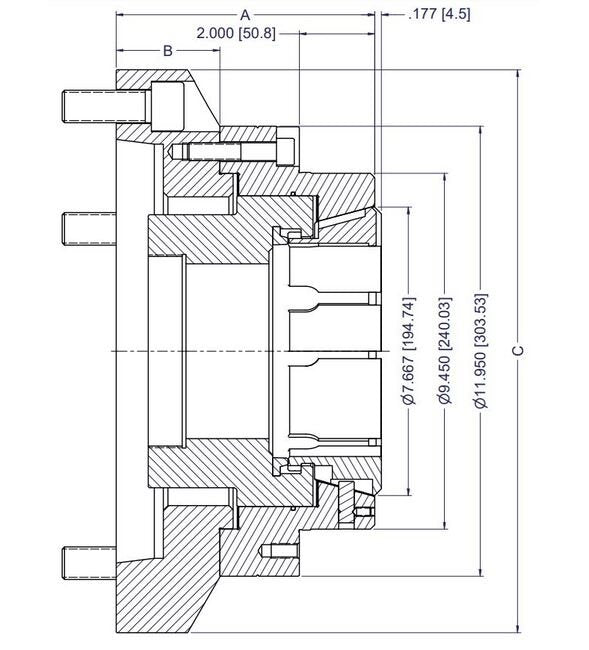

Specifications A Dimension
6.855 in | 174.12 mm
Specifications B Dimension
2.65 in | 67.31 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK140BZI
Specifications C Dimension
14.95 in | 379.73 mm
Specifications Item No
15 140 204
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
5.591 in | 142 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
3,500 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-15
Specifications Weight
157.98 lb | 71.65 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
