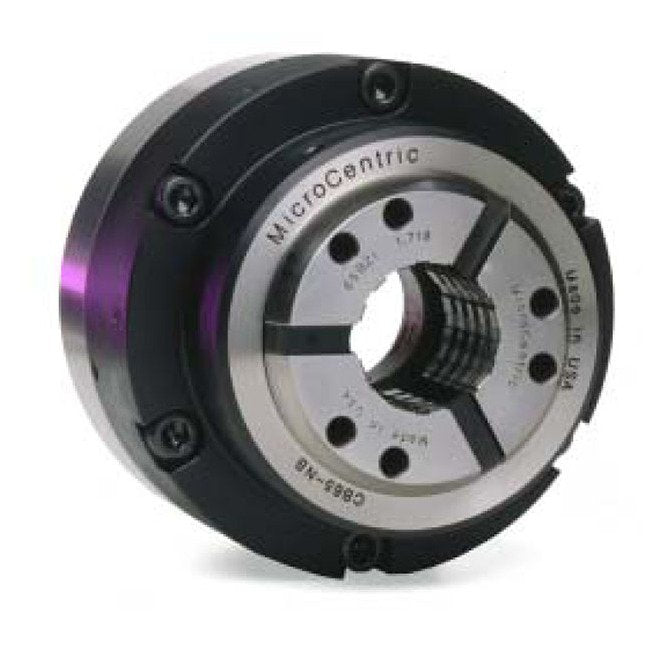

Precision CB-NB Collet Chucks - Pull Back Design SK100BZI
Precision CB-NB Collet Chucks - Pull Back Design SK100BZI
SKU:QUI-dadbb3
Maximize machining precision with our CB-NB Collet Chucks- Pull Back Design. Unbeatable accuracy and rigidity for optimal tool clearance and minimal maintenance.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Precision CB-NB Collet Chucks - Pull Back Design SK100BZI
$549.99
Quantity: 1
Claim Your Seller Account
Precision CB-NB Collet Chucks - Pull Back Design SK100BZI
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining operations with our premium CB-NB Collet Chucks featuring a Pull Back design for maximum clamping force efficiency. With a low profile, radial adjusting screws, and hardened components, these chucks ensure unbeatable accuracy, rigidity, and tool clearance. Enjoy a lubricated-for-life design that requires minimal maintenance, all while experiencing the precision and longevity of components ground to perfection. Perfect for demanding industrial environments requiring top-tier performance.
Product Specifications
Specifications Accuracy
0.0006 in | 0.015 mm

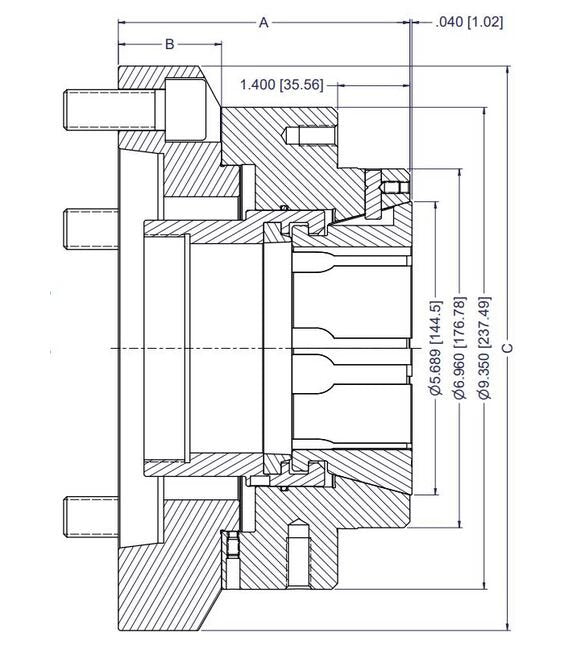

Specifications A Dimension
5.65 in | 143.51 mm
Specifications B Dimension
2 in | 50.8 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications C Dimension
10.95 in | 278.13 mm
Specifications Item No
15 100 142
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
47.9 lb | 21.8 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
