Precision CB-NB Collet Chucks with Pull Back Design
Precision CB-NB Collet Chucks with Pull Back Design
SKU:QUI-c2f7f0
Maximize machining accuracy with our Precision CB-NB Collet Chucks - Pull Back Design. Unrivaled rigidity, accuracy, and durability.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
Precision CB-NB Collet Chucks with Pull Back Design
$689.99
Quantity: 1
Claim Your Seller Account
Precision CB-NB Collet Chucks with Pull Back Design
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining accuracy with our Precision CB-NB Collet Chucks featuring a Pull Back design. The direct coupling of the collet to the draw tube connector ensures efficient force translation for maximum clamping force. With a low profile OD and radial adjusting screws for precise alignment, these chucks offer unrivaled rigidity, accuracy, and durability. Lubricated for life with hardened, precision-ground components, they require minimal maintenance while delivering exceptional performance.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

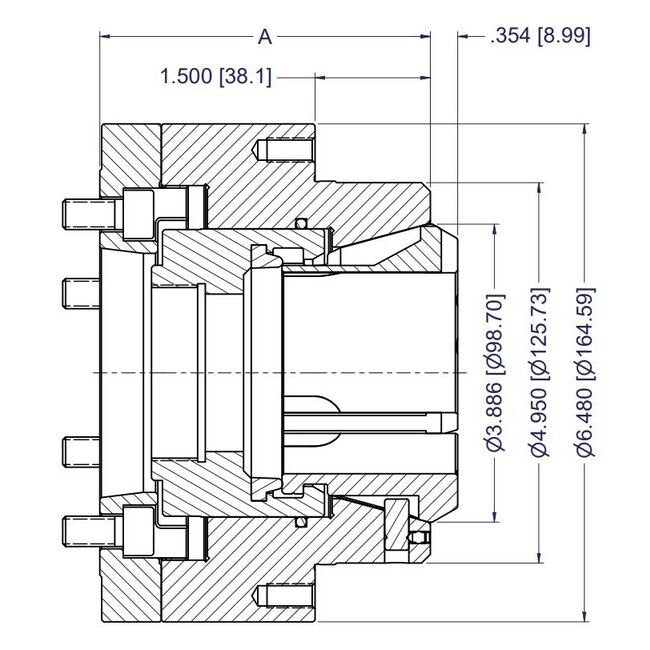

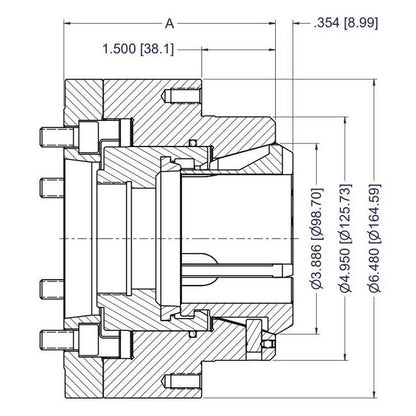

Specifications A Dimension
4.3 in | 109.22 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 301
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M70x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Weight
25.8 lb | 11.7 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
