Precision CB-NB Pull Back Collet Chuck
Precision CB-NB Pull Back Collet Chuck
SKU:QUI-51c968
Maximize clamping efficiency with the Precision CB-NB Pull Back Collet Chuck. Achieve high accuracy and rigidity with this low profile, precision ground chuck.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Precision CB-NB Pull Back Collet Chuck
$799.99
Quantity: 1
Claim Your Seller Account
Precision CB-NB Pull Back Collet Chuck
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency and rigidity. With a low profile design, radial adjusting screws, and a life lubricated system, this collet chuck ensures high accuracy and minimal maintenance. Its hardened components and precision ground construction guarantee long-lasting performance, meeting the highest standards of precision machining for both consumer and institutional buyers.
Product Specifications
Specifications Accuracy
0.0006 in | 0.015 mm

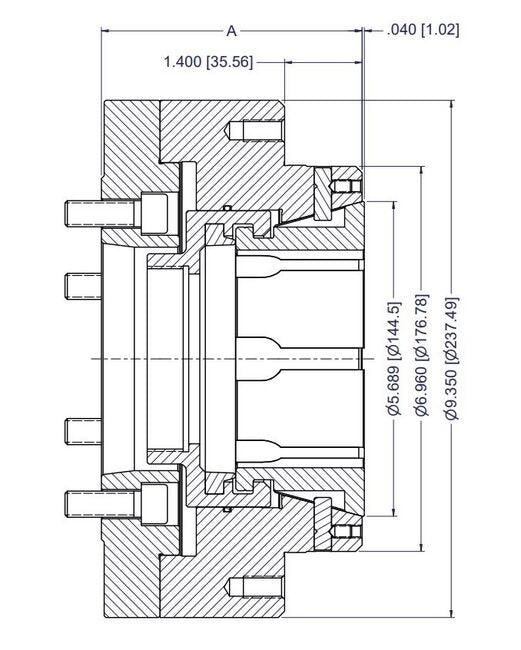

Specifications A Dimension
4.81 in | 122.17 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications Item No
15 100 141
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
47.9 lb | 21.8 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
