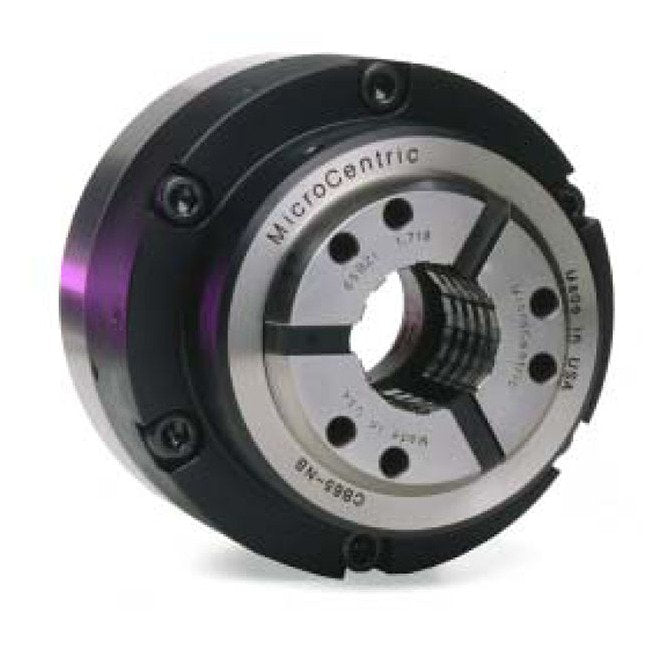

Precision CB-NB Pull Back Collet Chuck
Precision CB-NB Pull Back Collet Chuck
SKU:QUI-95ca15
Achieve ultimate precision with our Pull Back Collet Chuck for efficient clamping force and rigidity.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Precision CB-NB Pull Back Collet Chuck
$599.99
Quantity: 1
Claim Your Seller Account
Precision CB-NB Pull Back Collet Chuck
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched precision and efficiency with our Precision CB-NB Pull Back Collet Chuck. The innovative Pull Back design ensures maximum clamping force and rigidity, while radial adjusting screws and hardened components deliver exceptional accuracy and longevity. With a low profile and lubricated-for-life design, this collet chuck offers minimal maintenance and maximum tool clearance, enhancing your machining operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

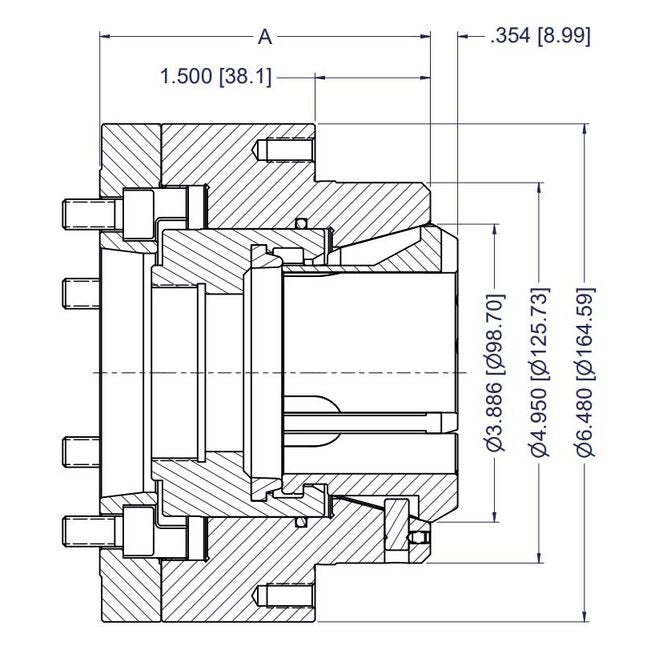

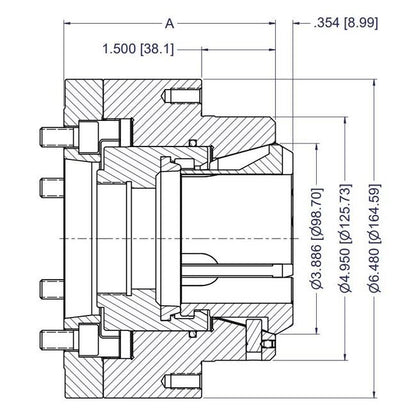

Specifications A Dimension
4.85 in | 123.19 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 302
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-6
Specifications Weight
27.6 lb | 12.5 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
