Precision CB-NB Pull Back Collet Chuck
Precision CB-NB Pull Back Collet Chuck
SKU:QUI-095ebe
Maximize accuracy & rigidity with Precision CB-NB Collet Chuck. Optimal tool clearance, hardened components & precise features for lasting performance.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Precision CB-NB Pull Back Collet Chuck
$1,299.99
Quantity: 1
Claim Your Seller Account
Precision CB-NB Pull Back Collet Chuck
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision CB-NB Pull Back Collet Chuck features a Pull Back design that optimizes clamping efficiency, ensuring maximum accuracy and rigidity. With a low profile OD and radial adjusting screws for precise alignment, this collet chuck offers exceptional tool clearance and Z-axis utilization. Hardened components and lubricated for life design guarantee long-lasting accuracy with minimal maintenance, while the collet model SK80BZI and precise specifications meet the highest industry standards.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

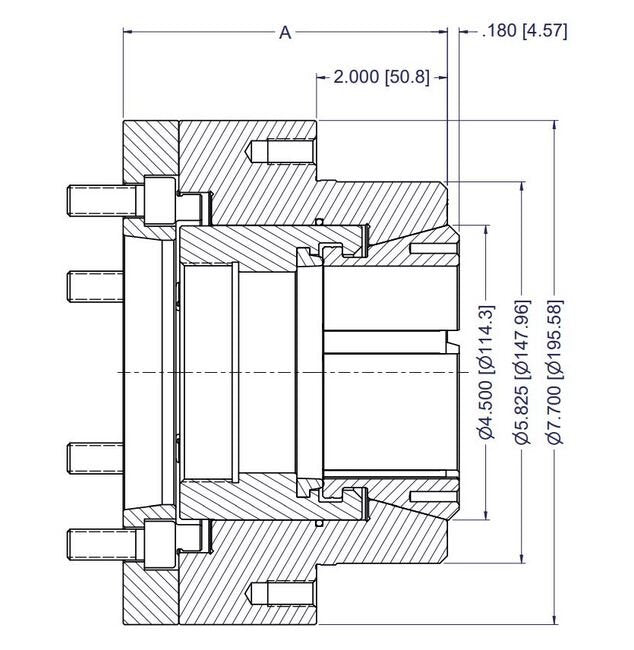

Specifications A Dimension
4.96 in | 125.98 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications Item No
15 080 100
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M85x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-6
Specifications Weight
39.1 lb | 17.7 kg
Standard Equipment 0
CB-NB collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
