Precision CB-ND Dead Length Collet Chucks
Precision CB-ND Dead Length Collet Chucks
SKU:QUI-5bc486
Achieve precision and durability with our CB-ND Dead Length Collet Chucks - perfect for high-speed applications!
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Precision CB-ND Dead Length Collet Chucks
$1,699.99
Quantity: 1
Claim Your Seller Account
Precision CB-ND Dead Length Collet Chucks
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision CB-ND Dead Length Collet Chucks offer unmatched accuracy and durability for collet sizes 120mm and larger. Featuring a Dead Length design, radial adjusting screws for precise alignment, and a lubricated-for-life design, these chucks ensure minimal maintenance and maximum performance. With hardened components and the ability to mount stop plates and housings inside the chuck body, these chucks are perfect for applications requiring end stops or part ejectors. Experience superior clamping force, high-speed operation up to 4,000 rpm, and compliance with the most stringent industry standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

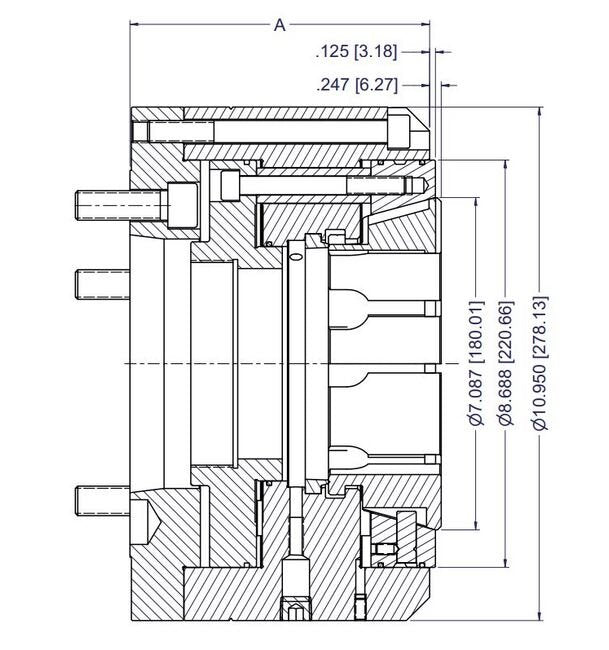

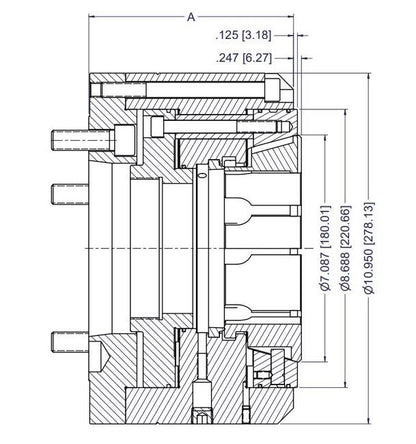

Specifications A Dimension
6.385 in | 162.18 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications Item No
15 120 150
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
128.39 lb | 58.23 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
