Precision CB-ND Dead Length Collet Chucks
Precision CB-ND Dead Length Collet Chucks
SKU:QUI-a9063d
Experience precision clamping with our CB-ND Dead Length Collet Chucks. Dead Length design, radial adjusting screws, and lifelong lubrication ensure exceptional accuracy and minimal maintenance.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Precision CB-ND Dead Length Collet Chucks
$2,899.99
Quantity: 1
Claim Your Seller Account
Precision CB-ND Dead Length Collet Chucks
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision CB-ND Dead Length Collet Chucks are meticulously engineered for collet sizes 120mm and above, ensuring superior clamping without any pull back effect on the workpiece. Featuring a Dead Length design and radial adjusting screws for precise alignment within .0002". With a lubricated-for-life design, minimal maintenance is required. All components are hardened and precision ground to deliver the highest accuracy and long lifespan. Equipped with stop plates and stop housings for applications needing end stops or part ejectors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

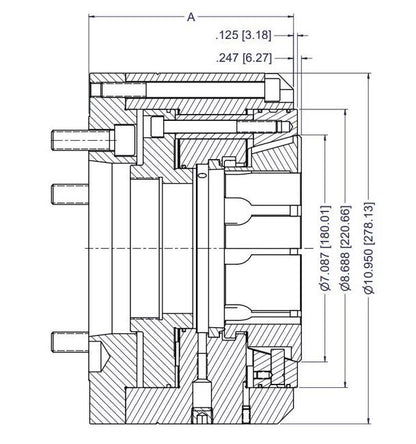

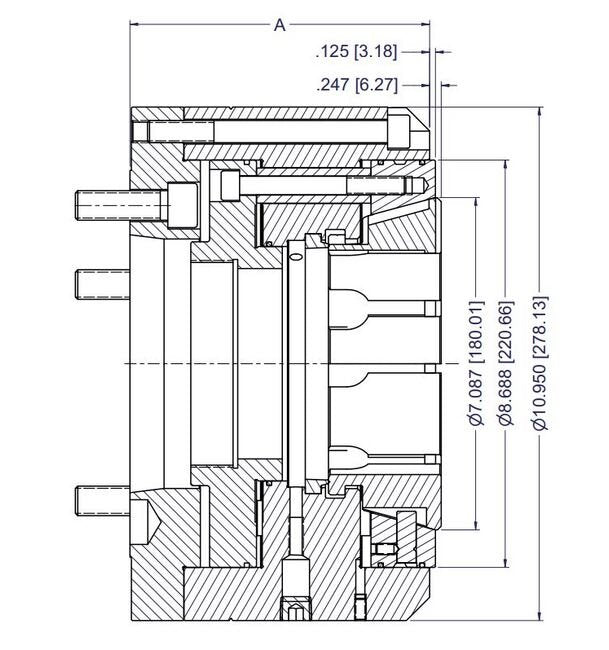

Specifications A Dimension
6.735 in | 171.07 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK120BZI
Specifications Item No
15 120 151
Specifications Linear Chuck Stroke
.315 in | 8 mm
Specifications Max Clamping Diameter
4.725 in | 120 mm
Specifications Max Clamp Force
35,969 lbs | 160 kN
Specifications Max Draw Tube Thread
M150x2
Specifications Max Speed
4,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-11
Specifications Weight
125.55 lb | 56.94 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
