The Precision CB-ND Dead Length Collet Chucks are engineered for superior performance in handling collet sizes of 120mm and larger. Featuring a Dead Length design, radial adjusting screws for precision alignment within .0002 inches, and a lubricated-for-life mechanism, these chucks offer unparalleled accuracy and durability. With components hardened and precision ground, they ensure long-lasting quality. The inclusion of stop plates and housings for end stops or part ejectors enhances their versatility, making them ideal for industrial applications requiring precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
0.002 in | 0.050 mm

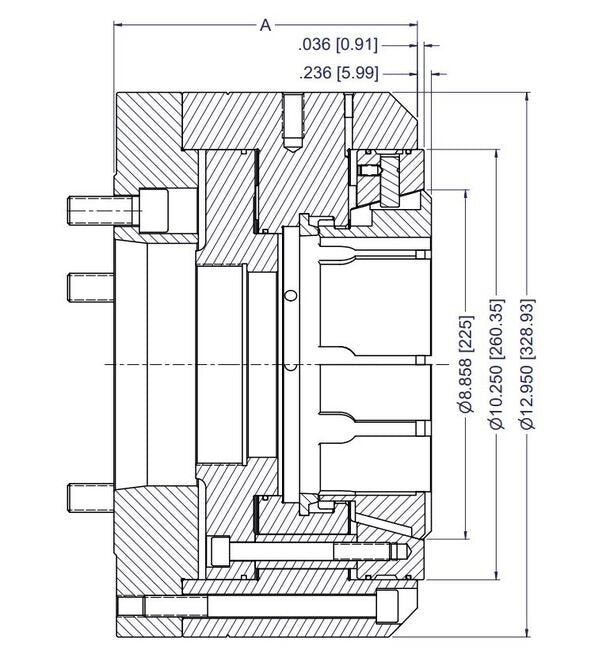

Specifications A Dimension
7.115 in | 180.72 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK160BZI
Specifications Item No
15 160 100
Specifications Linear Chuck Stroke
0.315 in | 8 mm
Specifications Max Clamping Diameter
6.300 in | 160 mm
Specifications Max Clamp Force
38,218 lbs | 170 kN
Specifications Max Draw Tube Thread
M115x2
Specifications Max Speed
3,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-8
Specifications Weight
197.97 lb | 89.78 kg
Standard Equipment 0
CB-ND collet chucks include a spindle adapter plate and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
