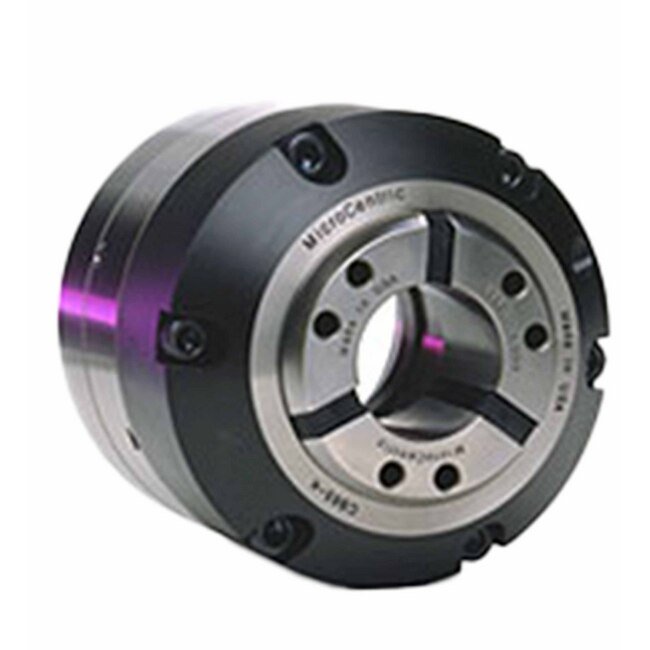

Experience superior clamping accuracy with our Precision CB-NK Collet Chucks featuring a pull-back design for maximum rigidity and efficiency. The low profile design ensures optimal tool clearance and radial adjusting screws allow precise chuck assembly alignment. With hardened components and a lubricated-for-life design, these chucks offer unmatched durability and minimal maintenance. Perfect for bar to chucking applications, these collet chucks provide a versatile solution for your machining needs.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

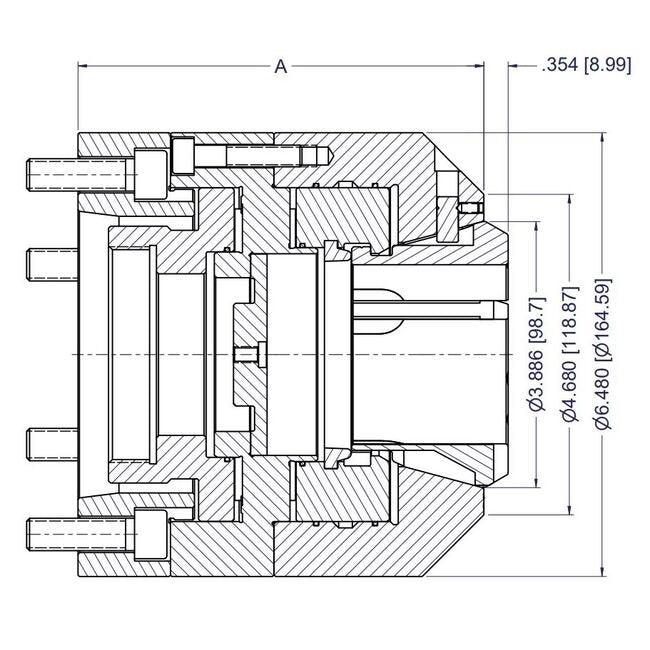

Specifications A Dimension
5.375 in | 136.53 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK65BZI
Specifications Item No
15 065 160
Specifications Linear Chuck Stroke
0.16 in | 4 mm
Specifications Max Clamping Diameter
2.625 in | 66 mm
Specifications Max Clamp Force
23,605 lbs | 105 kN
Specifications Max Draw Tube Thread
M72x2
Specifications Max Speed
6,000 rpm
Specifications Min Clamping Diameter
0.187 in | 5 mm
Specifications Spindle Nose
A2-5
Specifications Through Capacity
2.245 in | 57 mm
Specifications Weight
36.9 lb | 16.7 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
