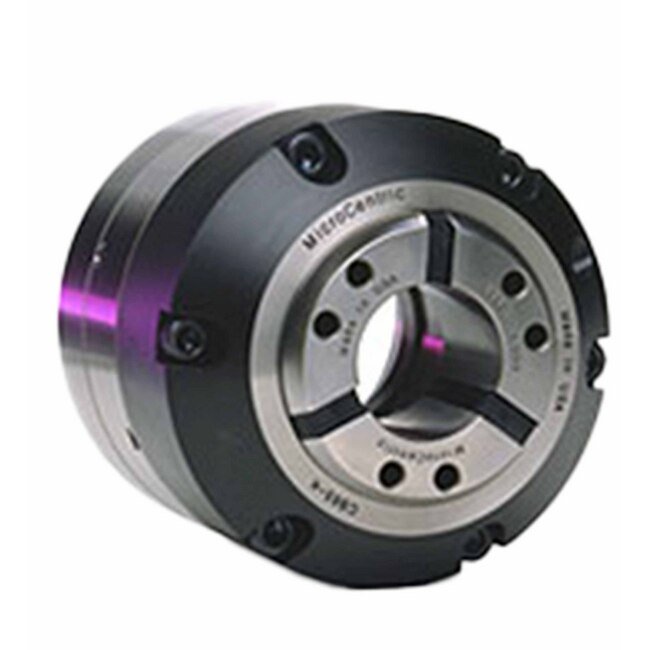

The Precision CB-NK Collet Chucks offer a superior pull back design with versatile end stop mounting capabilities, ideal for seamless transitions between bar and chucking applications. Featuring a direct collet-to-draw tube connection, these chucks maximize clamping efficiency by concentrating forces towards the spindle, ensuring exceptional accuracy and rigidity. With a low profile OD and radial adjusting screws for precise alignment, they provide increased tool clearance and effortless chuck assembly truing. Designed for ease of maintenance, all components are hardened and ground for durability, offering unmatched precision and longevity. The CB-NK series also includes removable stop plates and housings, catering to diverse chucking applications.
Product Specifications
Specifications Accuracy
.0004 in | 0.010 mm

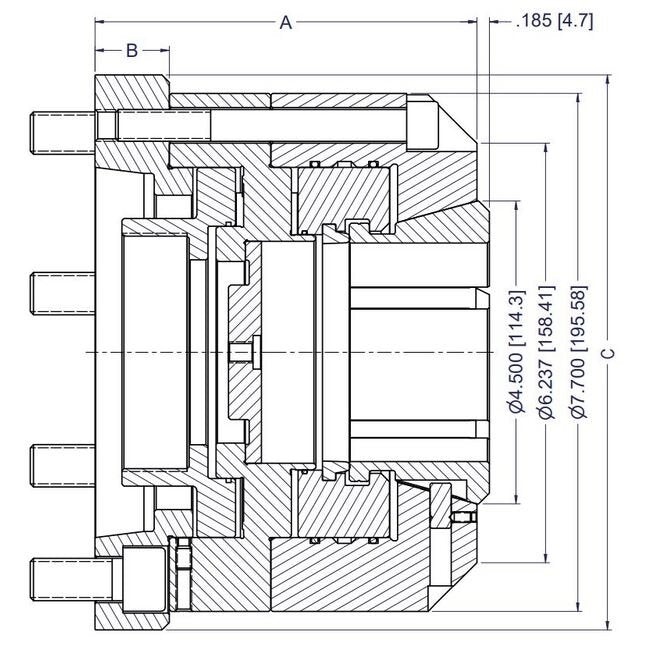

Specifications A Dimension
5.68 in | 144.27 mm
Specifications B Dimension
1.105 in | 28.07 mm
Specifications Clamping Range
+/- .020 in | +/- 0.5 mm
Specifications Collet Model
SK80BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 080 352
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-8
Specifications Through Capacity
2.700 in | 68 mm
Specifications Weight
55.5 lb | 25.17 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
