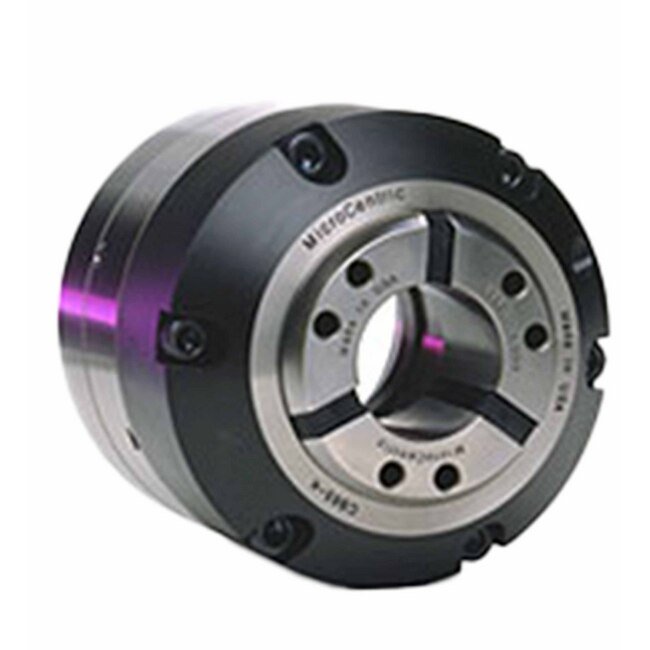

Precision CB-NK Collet Chucks - Pro Series
Precision CB-NK Collet Chucks - Pro Series
SKU:QUI-170174
Experience precision and durability with the Precision CB-NK Collet Chucks - Pro Series, ideal for various clamping applications.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Precision CB-NK Collet Chucks - Pro Series
$849.99
Quantity: 1
Claim Your Seller Account
Precision CB-NK Collet Chucks - Pro Series
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision CB-NK Collet Chucks - Pro Series offer a cutting-edge combination design for seamless bar to chucking applications. Featuring a pull back design and radial adjusting screws for precision alignment within .0002'', these chucks concentrate forces in the spindle direction for superior accuracy and rigidity. With a low profile OD, lubricated-for-life design, and all-hardened components, these chucks ensure minimal maintenance and long-term durability. Equipped with removable stop plates, stop housings, and a wide clamping range, these chucks are optimized for institutional and government procurement standards.
Product Specifications
Specifications Accuracy
.0006 in | 0.015 mm

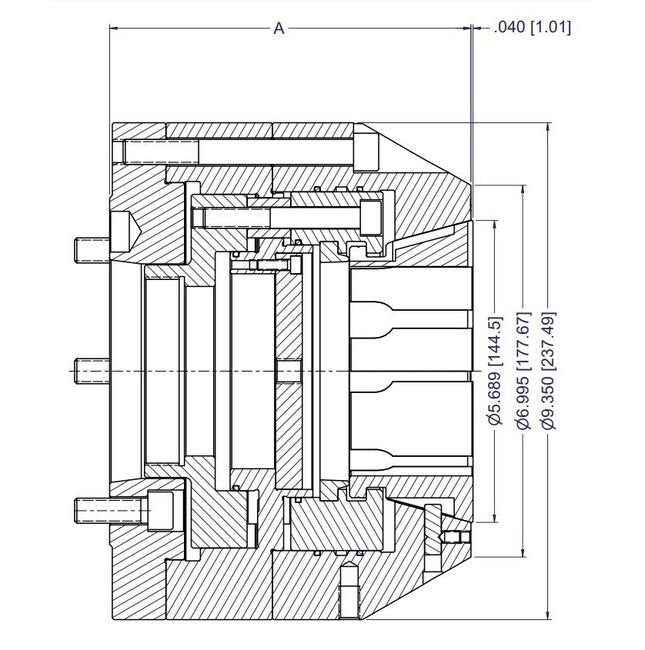

Specifications A Dimension
6.79 in | 172.47 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
SK100BZI
Specifications Item No
15 100 160
Specifications Linear Chuck Stroke
0.275 in | 7 mm
Specifications Max Clamping Diameter
4.000 in | 100 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-6
Specifications Through Capacity
3.370 in | 93 mm
Specifications Weight
47.9 lb | 21.8 kg
Standard Equipment 0
Each CB-NK collet chuck includes a removable stop plate, spindle adapter plate, and a blank draw tube connector. Threaded draw tube connectors for specific machine configurations are furnished at no additional charge if draw tube dimensions are provided with your purchase order.
