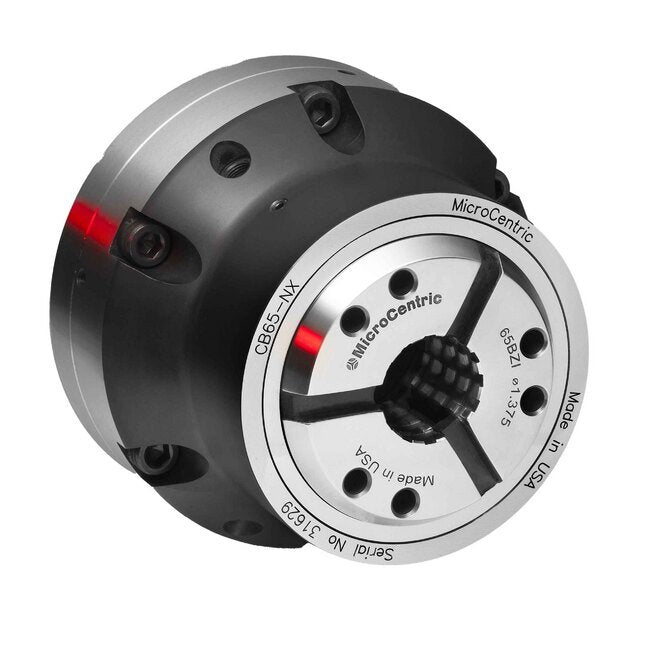

The Precision CB-NX Dead Length Collet Chuck is expertly designed for maximum tool clearance and optimal Z-axis utilization. With a low profile dead length design and a reduced diameter nose, this chuck ensures precise clamping without creating a pull back effect. Radial adjusting screws allow for exact alignment within .0002 inches for superior accuracy. Featuring a lubricated-for-life design and all components hardened and precision ground, this chuck guarantees minimal maintenance and long-lasting performance. Stop plates, stop housings, and ejectors can be mounted inside the chuck body for versatile chucking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0008 in | .020 mm

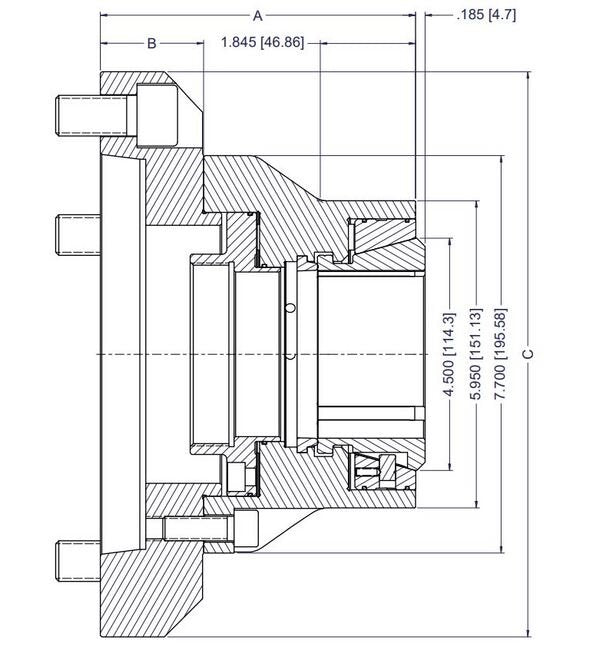

Specifications A Dimension
5.21 in | 132.33 mm
Specifications B Dimension
1.105 in | 28.07 mm
Specifications Clamping Range
+/- .020 in | 0.5 mm
Specifications Collet Model
80BZI
Specifications C Dimension
8.25 in | 209.55 mm
Specifications Item No
15 080 252
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
3.250 in | 82.5 mm
Specifications Max Clamp Force
25,853 lbs | 115 kN
Specifications Max Draw Tube Thread
M100x2
Specifications Max Speed
5,500 rpm
Specifications Min Clamping Diameter
0.500 in | 12 mm
Specifications Spindle Nose
A2-8
Specifications Weight
37.7 lb | 17.1 kg
