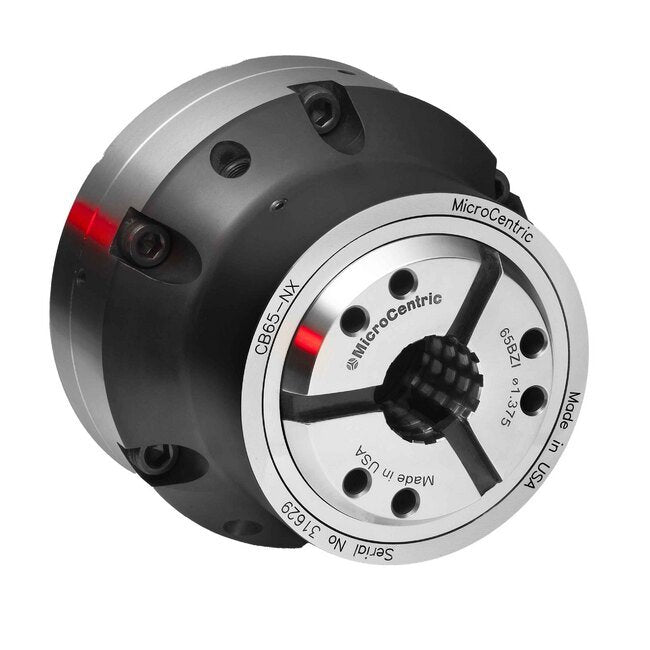

The Precision CB-NX Dead Length Collet Chuck is engineered for maximum tool clearance and precise clamping. Featuring a low-profile design and radial adjusting screws for superior accuracy, this chuck ensures minimal maintenance with its lubricated-for-life design. With the collet fixed in the Z axis during clamping, it eliminates pull back effect, making it ideal for high-precision machining applications.
Product Specifications
Specifications Accuracy
.001 in | 0.025 mm

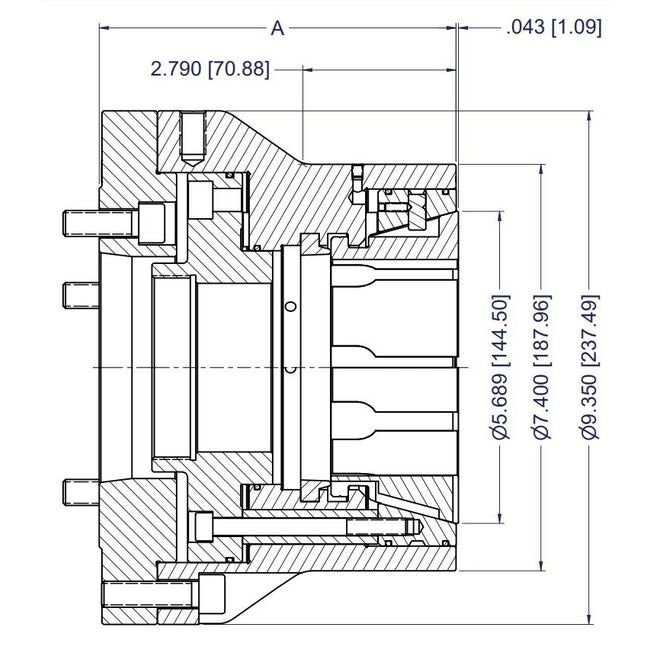

Specifications A Dimension
6.5 in | 165.1 mm
Specifications Clamping Range
+/- .040 in | +/- 1 mm
Specifications Collet Model
100BZI
Specifications Item No
15 100 170
Specifications Linear Chuck Stroke
.160 in | 4 mm
Specifications Max Clamping Diameter
4.000 in | 102 mm
Specifications Max Clamp Force
33,721 lbs | 150 kN
Specifications Max Draw Tube Thread
M90x2
Specifications Max Speed
5,000 rpm
Specifications Min Clamping Diameter
1.000 in | 25 mm
Specifications Spindle Nose
A2-6
Specifications Weight
74.3 lb | 33.7 kg
