Precision Change KSF Power Chucks - High Accuracy Chuck Models
Precision Change KSF Power Chucks - High Accuracy Chuck Models
SKU:KSF-b1178e
Enhance precision and performance with Precision Change KSF Power Chucks - ideal for high-demand machining applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Precision Change KSF Power Chucks - High Accuracy Chuck Models
$1,499.99
Quantity: 1
Claim Your Seller Account
Precision Change KSF Power Chucks - High Accuracy Chuck Models
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

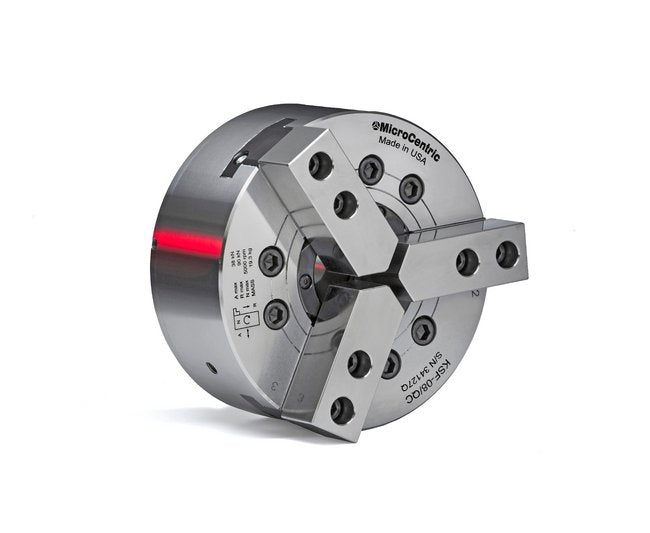

The Precision Change KSF Power Chucks offer unparalleled precision with their patented QC Precision Change Jaw System, ensuring minimal jaw lift and exceptional long-term accuracy. Featuring hardened chuck body, actuators, and master jaws, these chucks deliver superior performance. With a repeating accuracy of .0001'', chuck diameter of 8.25'', and various other advanced specifications, these chucks are designed to meet the rigorous demands of industrial applications.
Product Specifications
Specifications Actuator Stroke
0.709 in | 18 mm
Specifications Chuck Diameter
8.25 in | 210 mm
Specifications Chuck Weight
52 lb | 23.6 kg
Specifications Jaw Stroke
0.299 in | 7.6 mm
Specifications Jaw System
Precision Change
Specifications Max Clamp Force
21,130 lbs | 94 kN
Specifications Max Draw Tube Force
8,540 lbs | 38 kN
Specifications Max Speed
5,000 rpm
Specifications Moment Of Inertia
13.5 lb-ft² | 0.57 kg-m²
Specifications Number Of Jaws
3
Specifications Repeating Accuracy
0.0001 in | 0.0025 mm
Specifications Through Hole
2.598 in | 66 mm
Standard Equipment 0
Threaded draw tube adapters are furnished on request A2-5, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-5, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
