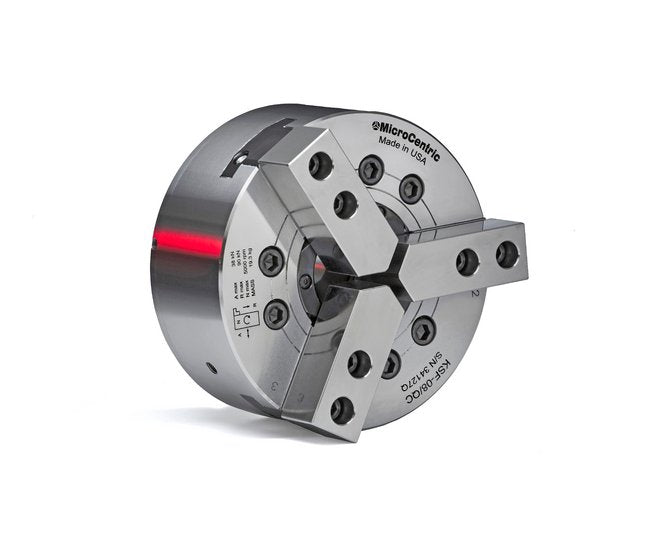

Precision Change KSF Power Chucks - Industrial Grade Precision Chuck Models
Precision Change KSF Power Chucks - Industrial Grade Precision Chuck Models
SKU:KSF-511c5e
Experience industrial-grade precision with Precision Change KSF Power Chucks - unmatched accuracy and reliability for high-speed applications.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Precision Change KSF Power Chucks - Industrial Grade Precision Chuck Models
$2,899.99
Quantity: 1
Claim Your Seller Account
Precision Change KSF Power Chucks - Industrial Grade Precision Chuck Models
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Precision Change KSF Power Chucks boast a patented QC Precision Change Jaw System, ensuring unparalleled accuracy and performance. Featuring hardened chuck body, actuators, and master jaws, these chucks are designed for long-term precision. With a repeating accuracy of 0.0001 inches (0.0025 mm) TIR, they offer consistent and reliable performance. The Chuck Diameter of 10 inches (254 mm), along with a Max. Speed of 4,500 rpm, makes them ideal for high-demand industrial applications. Equipped with a range of standard accessories including Threaded Draw Tube Adapters and Spindle Mounting Plates, these chucks are versatile and ready for various mounting requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuator Stroke
0.787 in | 20 mm
Specifications Chuck Diameter
10 in | 254 mm
Specifications Chuck Weight
88.2 lb | 40 kg
Specifications Jaw Stroke
0.335 in | 8.5 mm
Specifications Jaw System
Precision Change
Specifications Max Clamp Force
26,970 lbs | 120 kN
Specifications Max Draw Tube Force
11,240 lbs | 50 kN
Specifications Max Speed
4,500 rpm
Specifications Moment Of Inertia
31.09 lb-ft² | 1.31 kg-m²
Specifications Number Of Jaws
3
Specifications Repeating Accuracy
0.0001 in | 0.0025 mm
Specifications Through Hole
3.228 in | 82 mm
Standard Equipment 0
Threaded draw tube adapters are furnished on request A2-5, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-5, A2-6, A2-8, and various flat, threaded, and tapered nose spindle mounting plates are available on request.
