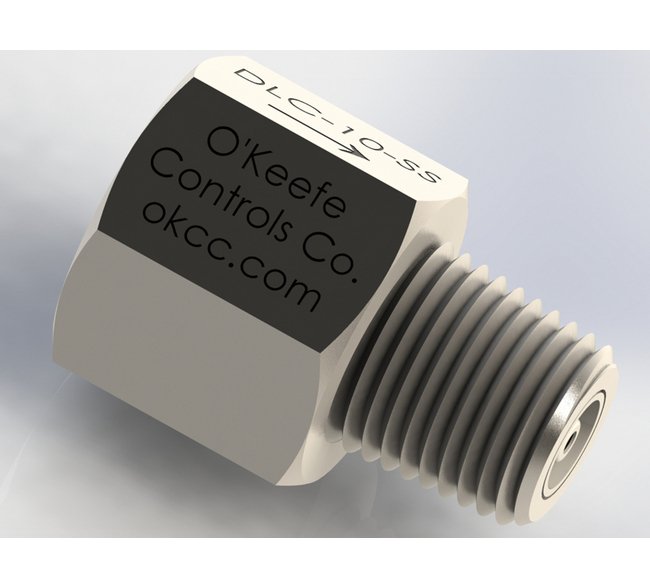

Precision Check Valves, Ball Type - NPT Connection
Precision Check Valves, Ball Type - NPT Connection
SKU:CHE-d2414a
Reliable Precision Check Valves with NPT Connection, ideal for secure directional flow control in liquids or gases.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Check Valves, Ball Type - NPT Connection
$49.99
Quantity: 1
Claim Your Seller Account
Precision Check Valves, Ball Type - NPT Connection
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Precision Check Valves, Ball Type with NPT Connection, offer reliable performance in controlling liquid or gas flow, featuring 303 SS material, 304 SS Ball, and a Cracking Pressure of 10 psig. With a maximum temperature of 300°F and a leak-proof metal-to-metal construction, these valves ensure secure one-way flow. Ideal for institutional use, these valves meet stringent industry standards, providing long-lasting durability and high pressure capability.
Product Specifications
Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Female
Specifications Connection B
1/8" NPT Male
Specifications Cracking Pressure
10 psig
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
