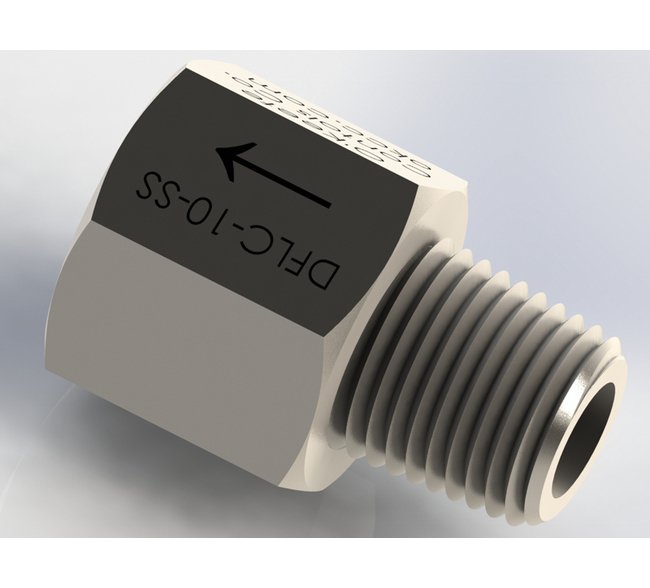

Precision Check Valves - NPT Connection, Ball Type
Precision Check Valves - NPT Connection, Ball Type
SKU:CHE-0c308b
Enhance fluid control with Precision Check Valves. Suitable for liquids or gases, these durable valves ensure reliable, high-pressure performance for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Precision Check Valves - NPT Connection, Ball Type
$49.99
Quantity: 1
Claim Your Seller Account
Precision Check Valves - NPT Connection, Ball Type
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

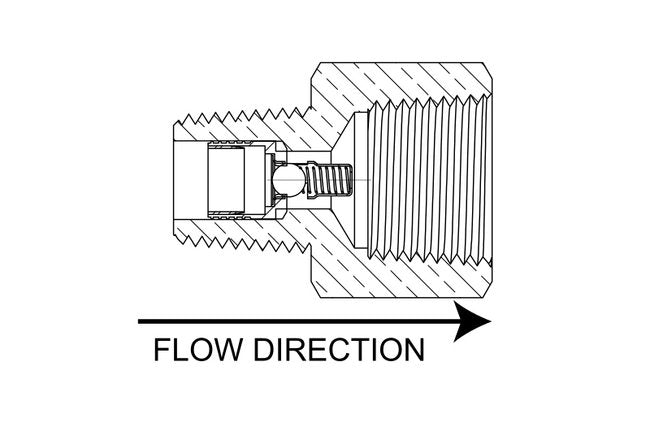

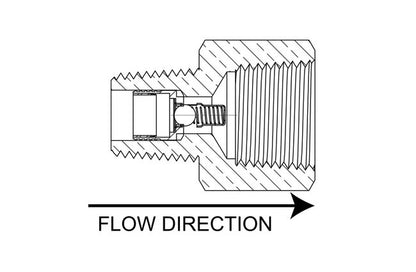

Upgrade your fluid control system with our Precision Check Valves - Ball Type. Crafted from high-grade 303 SS and 304 SS materials, these valves offer a maximum operating pressure of 200 psig and a cracking pressure of 10 psig, ensuring reliable performance even under high pressure conditions. With all-metal construction and minimal seat leakage, these valves are ideal for liquids or gases, making them a durable and efficient choice for industrial applications. Trust in our Precision Check Valves for superior flow control and long-lasting operation.
Product Specifications

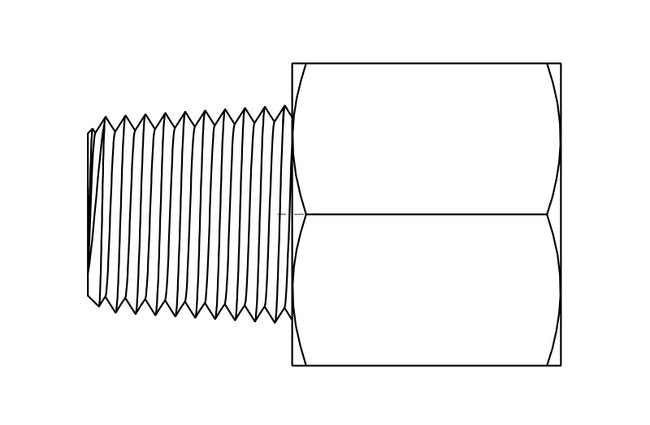

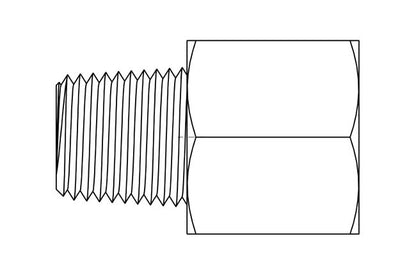

Dimensions Total Length
0.880 in
Dimensions Width Across Flats Hex
9/16 in
Features Features
All metal construction Long life operation Choice of cracking pressure High pressure capability
Flow Data Air Flow At 100 Psig
331 ft³/h
Flow Data Water Flow At 100 Psig
0.8 gpm
Specifications Ball Material
304 SS
Specifications Connection A
1/8" NPT Male
Specifications Connection B
1/8" NPT Female
Specifications Cracking Pressure
10 psig
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure Gauge
200 psig
Specifications Maximum Temperature
300 ºF
Specifications Seat Leakage
20 SSCM (max.) air flow at 25 psi differential
